Overview

Our QuickCodes feature enables you to register a QR code, then scan it in the field to automatically start a capture from a designated starting position. This feature is particularly useful for large-scale developments with numerous nearly identical units or multiple floors. It’s also helpful to ensure consistency when capturing across your site. Below are instructions to print, set up, and use QuickCodes.

Print a QR code

Your first step is to print the QR code or codes you want. Then you’ll be able to set them up for use in the field.

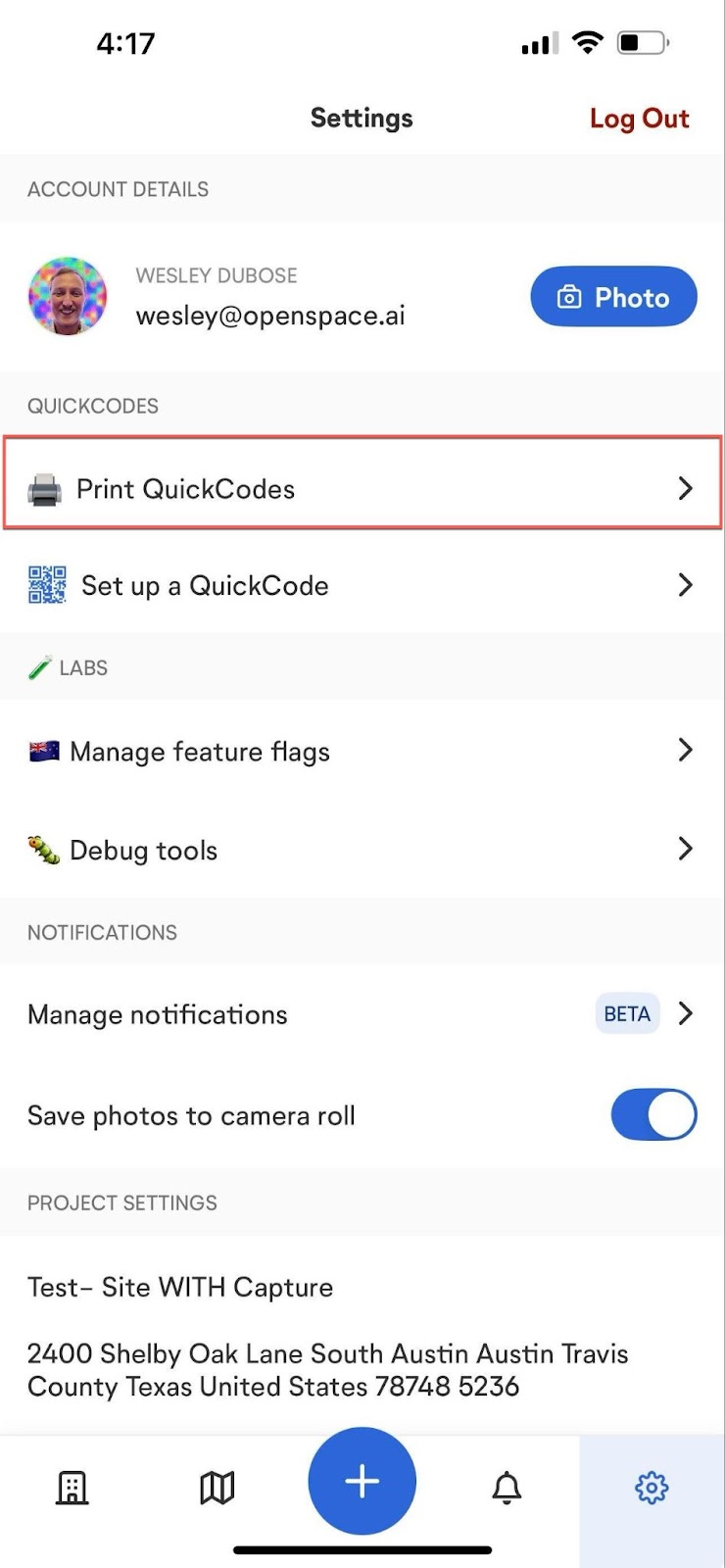

• Go to the Settings tab on the OpenSpace mobile app.
• Select Print QuickCodes.

• Input the number of QuickCodes you’d like to generate.

• Select Print to print the QuickCodes directly from your mobile device, or select the export button to text/email them.

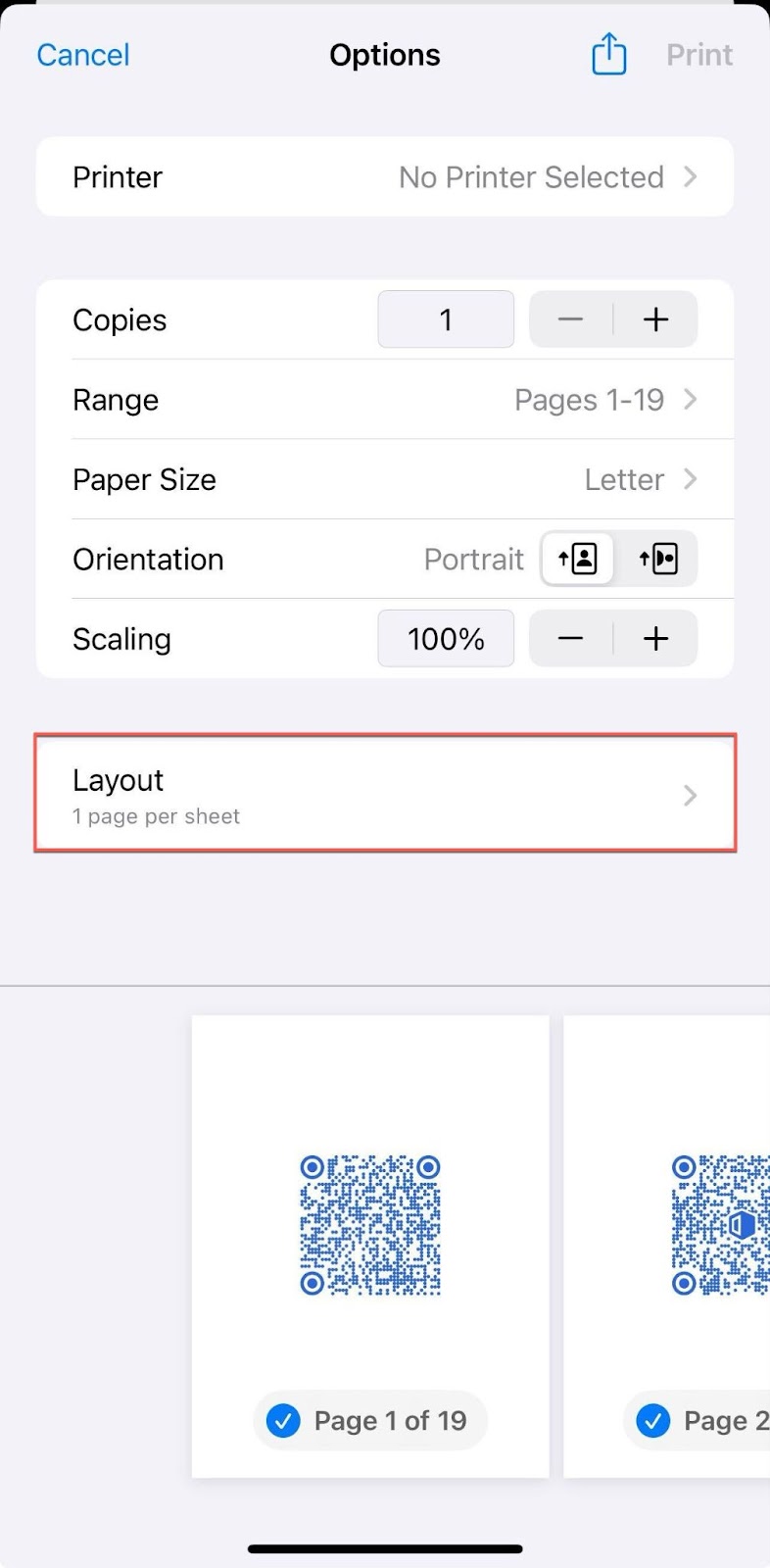

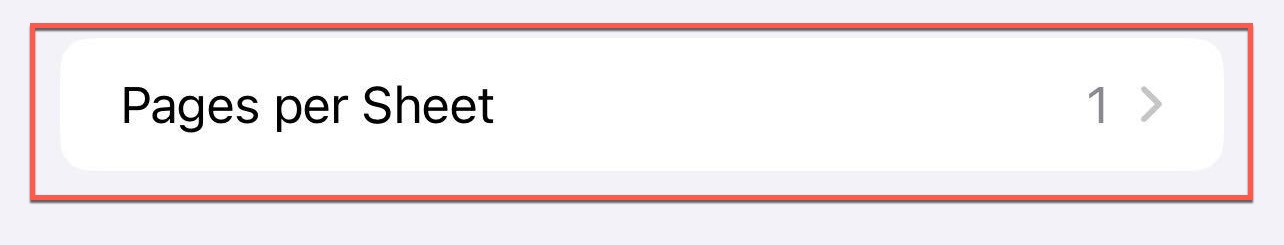

• Note: You can select Layout and then Pages per Sheet to configure how many QuickCodes you want to print per page.

How to set up QuickCodes

• Go to the Settings tab on the OpenSpace mobile app.
• Select Set up a QuickCode.
• Scan your printed QuickCode.
• Select a sheet and starting position to register the QuickCode.

How to use QuickCode to start a capture

• Click the Create button in the OpenSpace mobile app.
• Select Field Note.
• Scan the QuickCode from your mobile device.
• The QuickCode will automatically start the capture for you.
• Note: If you’re not already connected to your camera, the app will walk you through the camera connection flow.

How to use QuickCode to start a capture during an existing capture

• While capturing, select Camera.
• Scan the QuickCode from your mobile device.
• The QuickCode will automatically start the next capture for you.

If you have any additional questions please reach out to the OpenSpace Support team at support@openspace.ai.
