Managing Drone Captures

Overview

After OpenSpace Air processes your drone capture, you’ll be able to view your orthomosaic, pinned photos, 3D mesh, point cloud, and elevation model.

Permissions

Orthomosaic

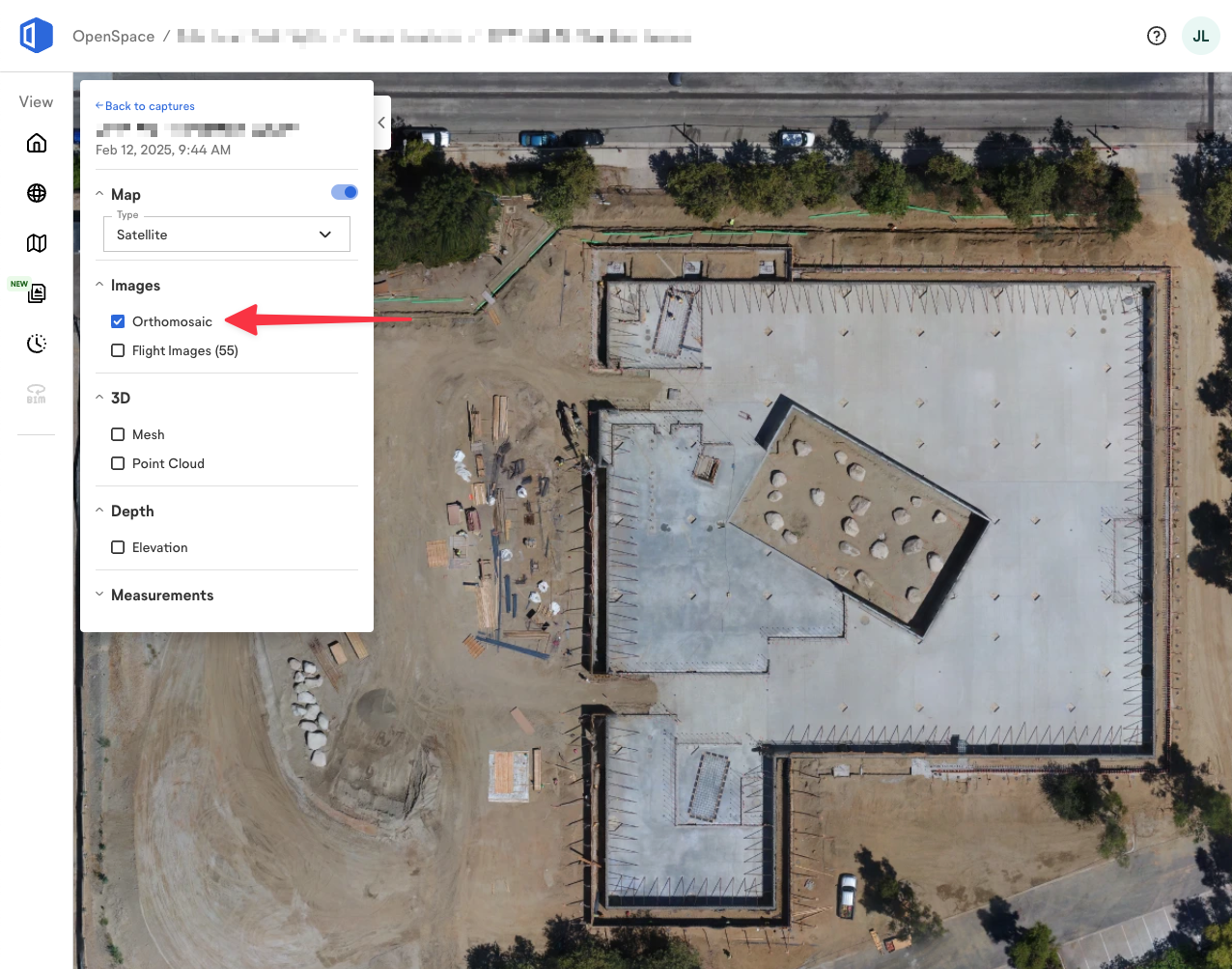

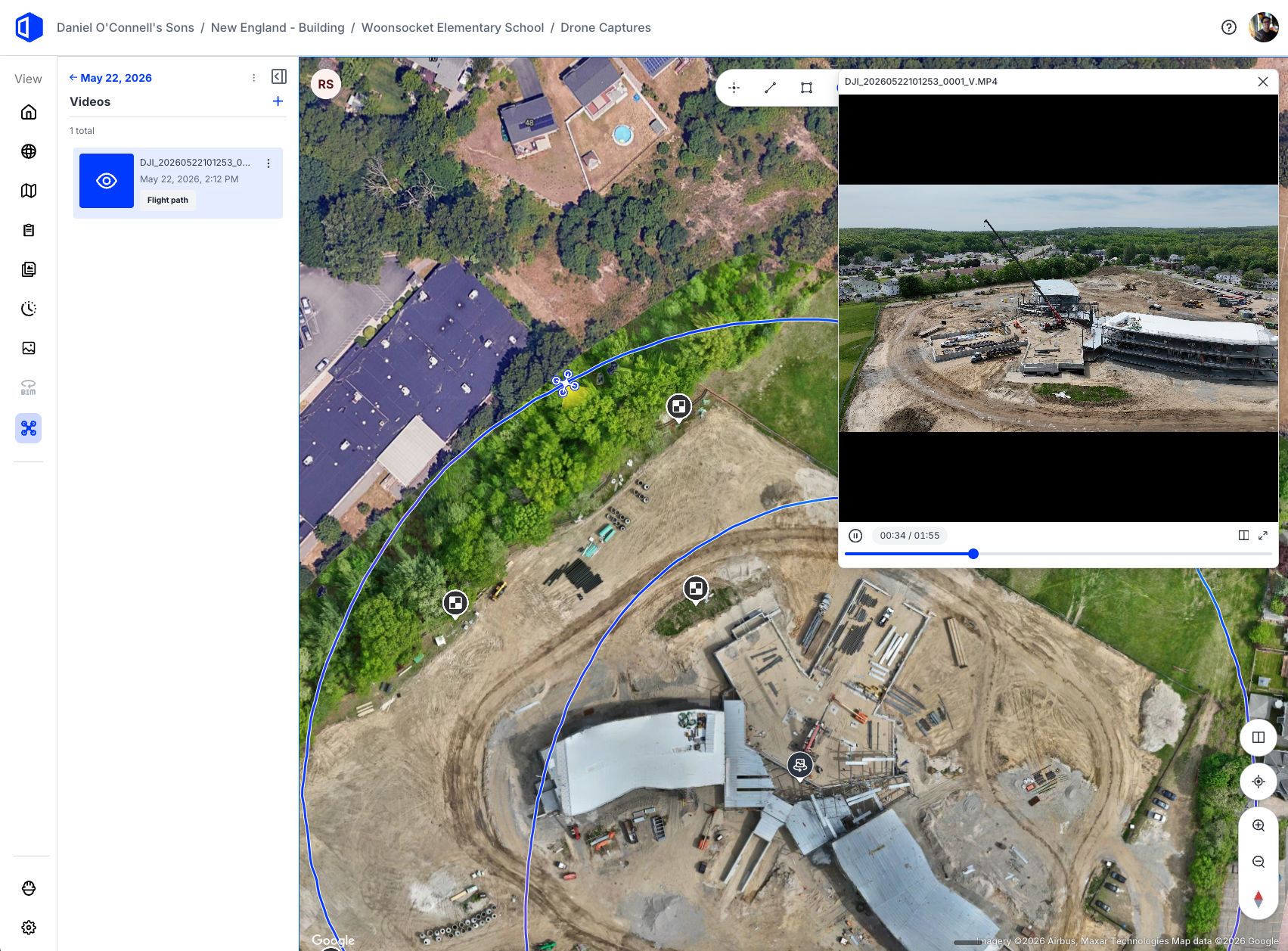

The orthomosaic provides a detailed overview of the site that you can use for logistics, site planning, tracking progress, and QA/QC. The orthomosaic is overlaid on the map and you can toggle it on and off.

Additional drone images

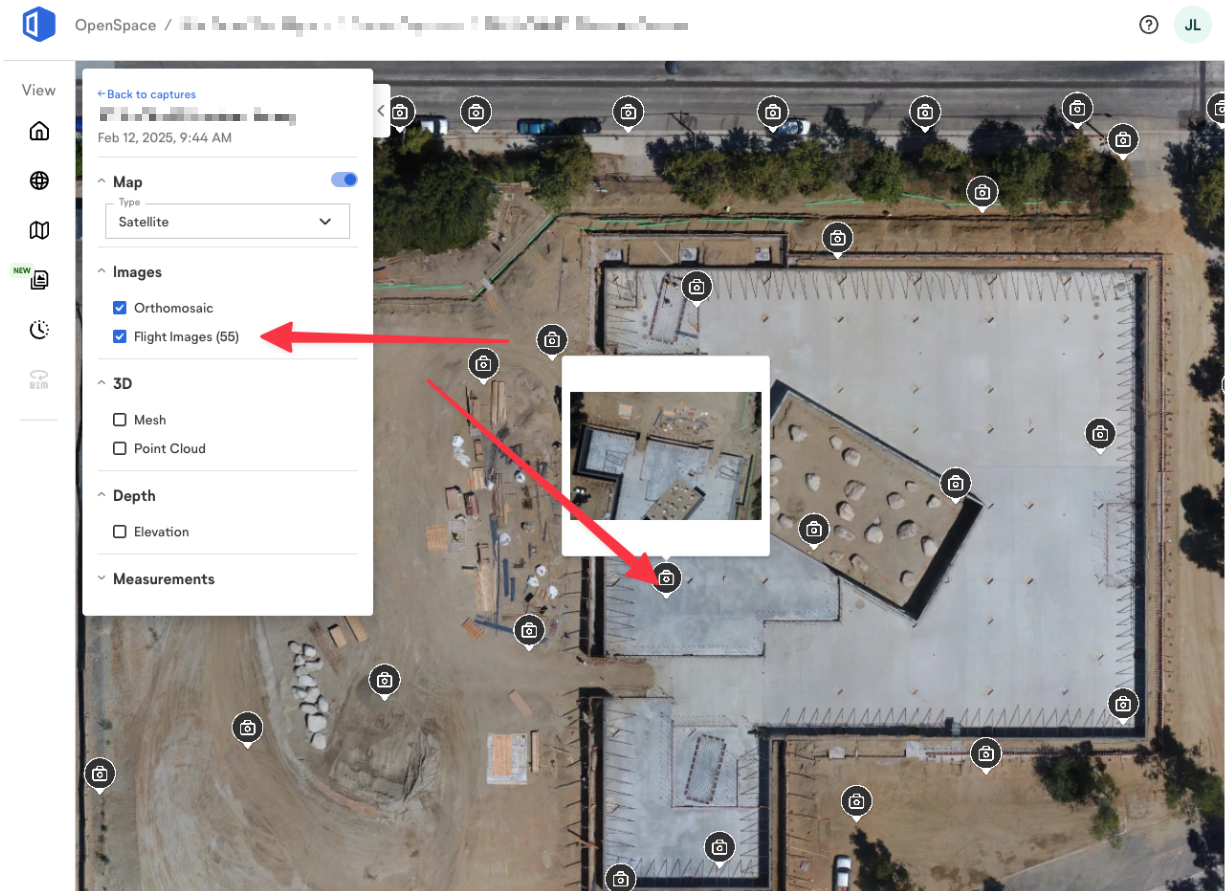

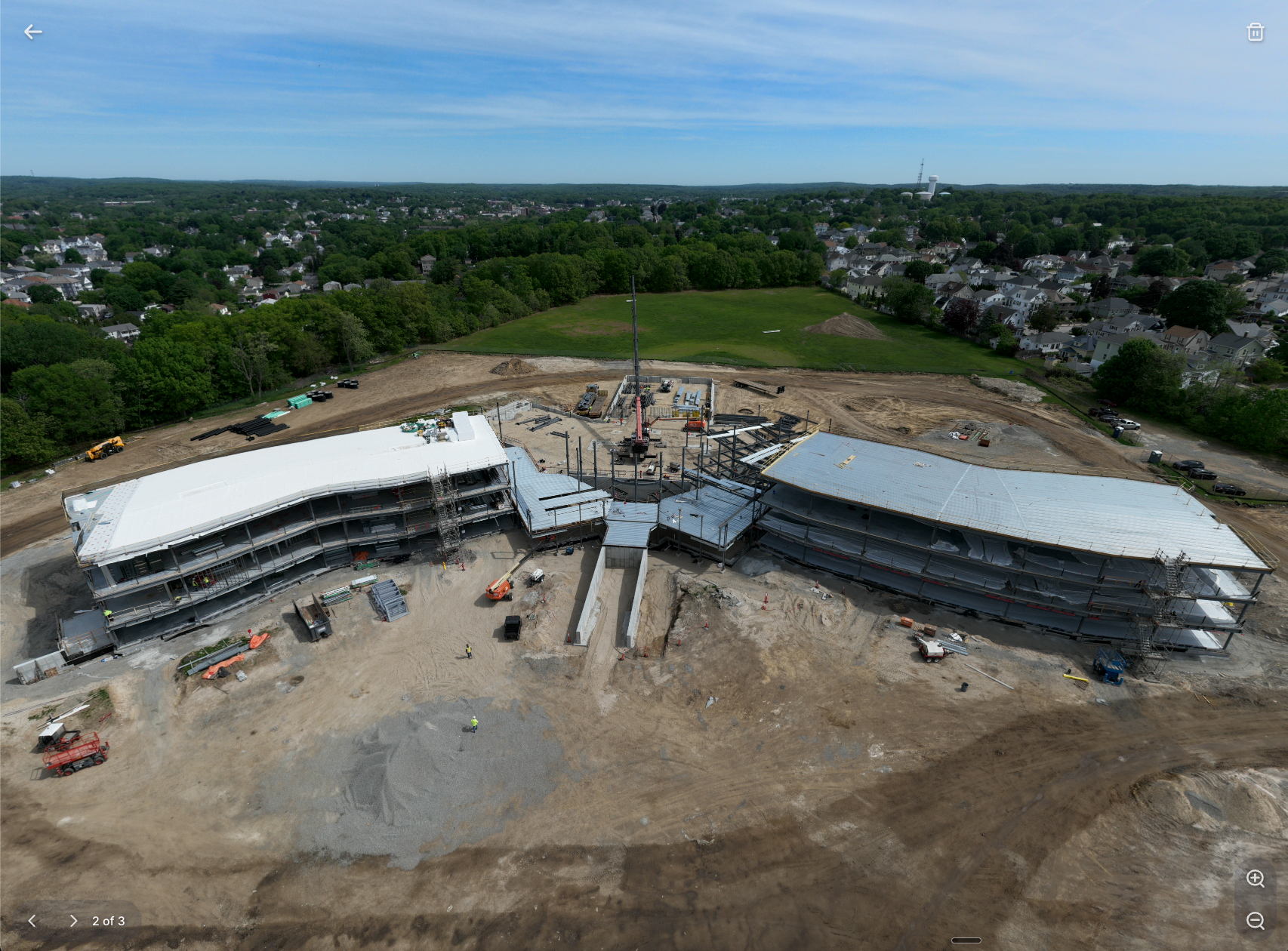

You can upload additional flight images—images taken outside of a mapping flight—and OpenSpace Air will automatically pin them to the map. To view these images in full screen, click the image icon on the map.

3D mesh

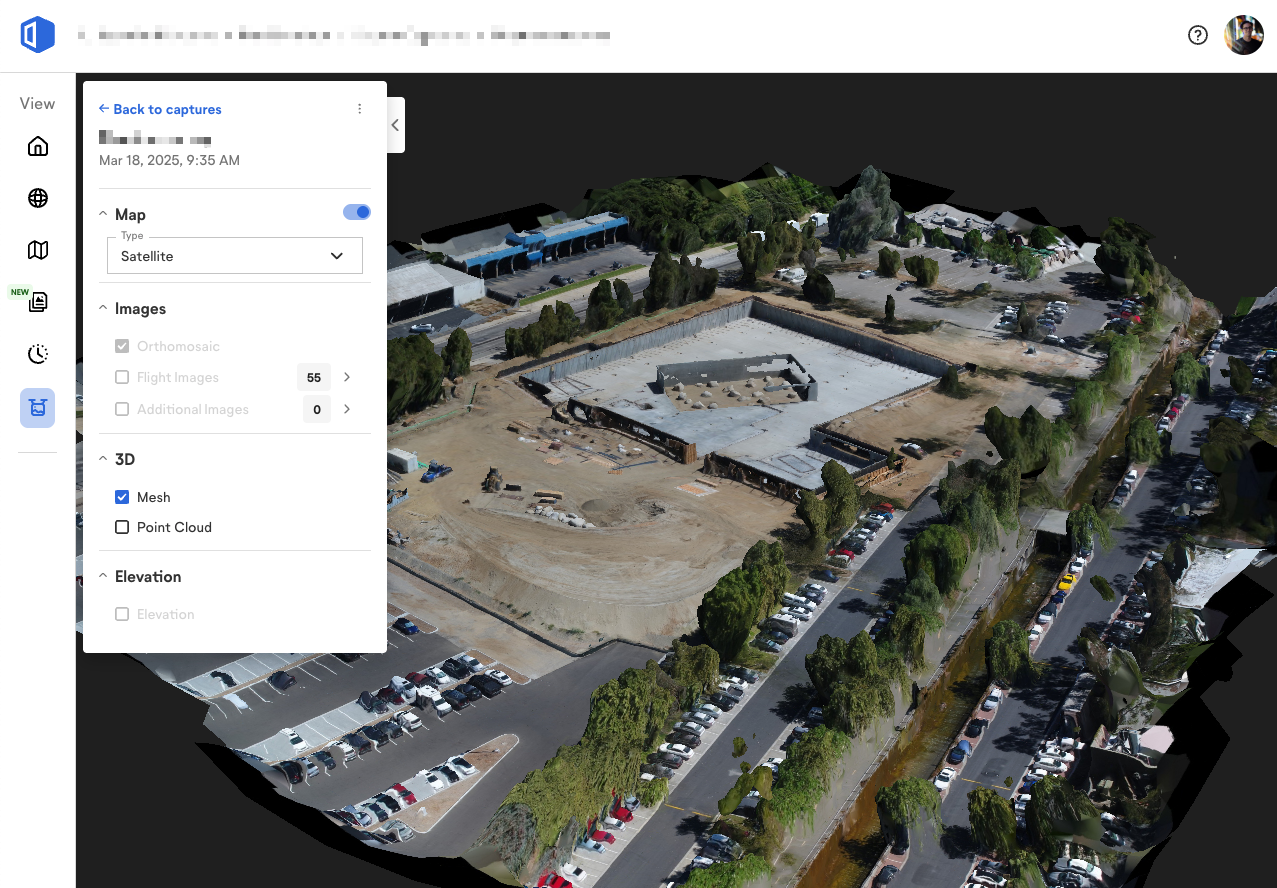

The mesh provides a 3D view of your site—a helpful visual for client updates and getting a sense of current conditions for vertical structures.

Point cloud

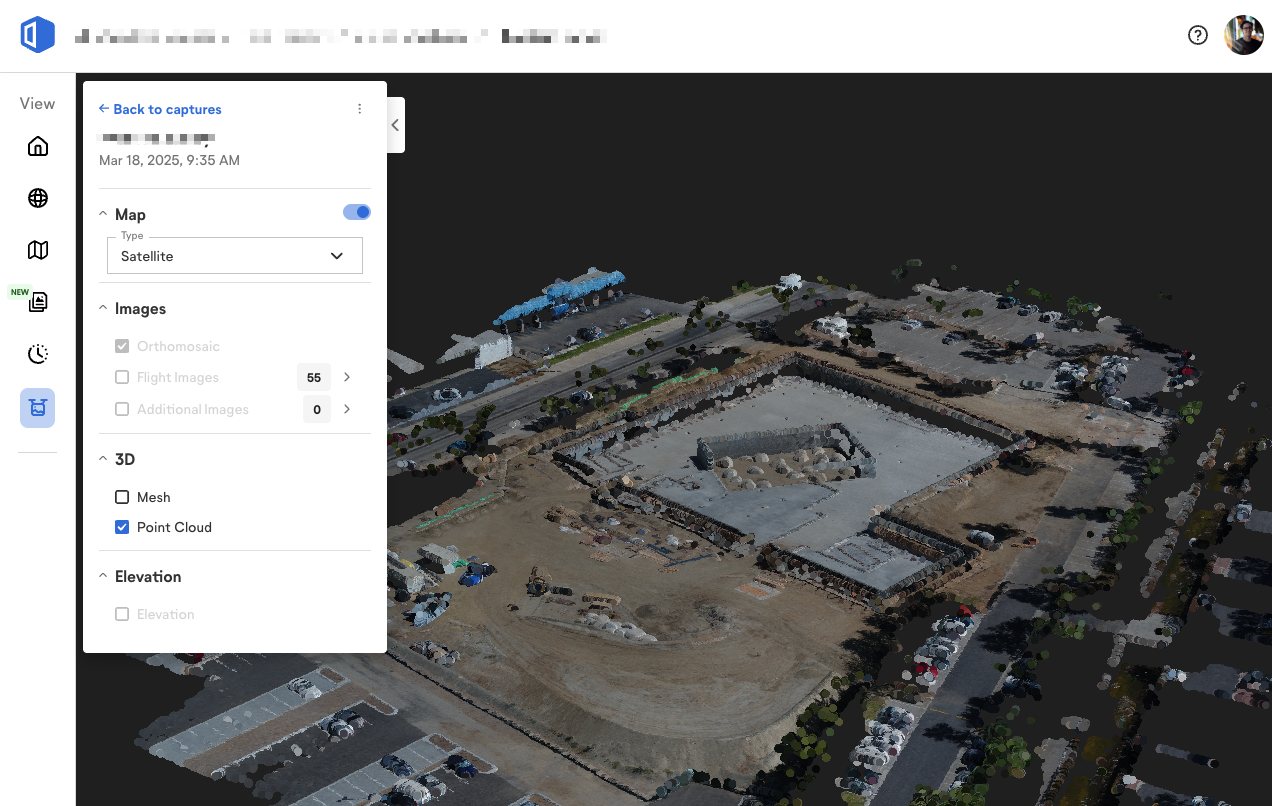

The point cloud provides a detailed view of current conditions in 3D.

Elevation model

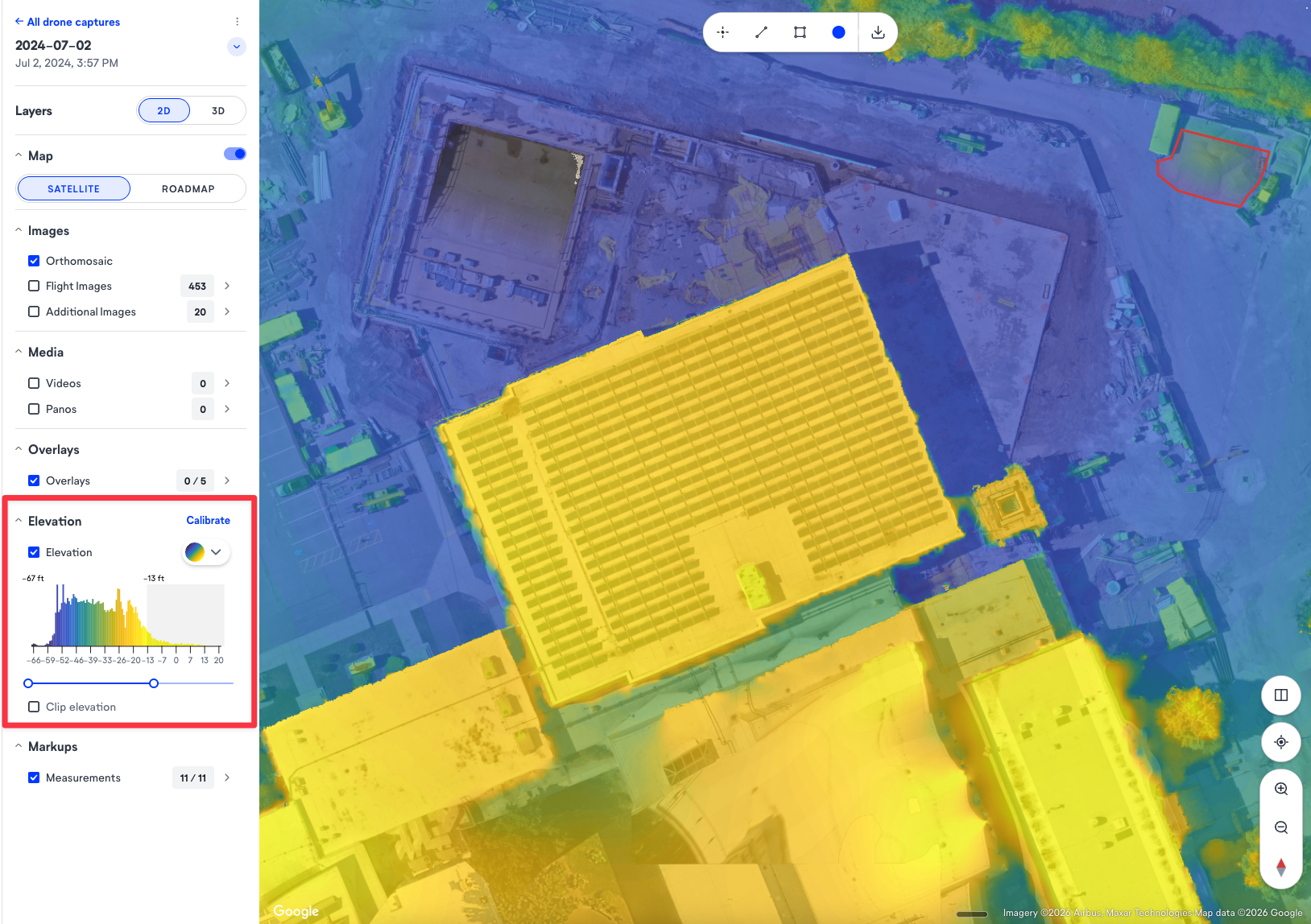

The elevation model is a digital surface model (DSM) that includes above-ground features, like structures. You can use the slider to adjust the elevation range that appears in the viewer. Choose from four color palettes, depending on which works best for your site.

OpenSpace Air automatically calibrates the elevation output for each drone capture. Some drones are known to report absolute elevation values that can be off by up to 100m—this fix automatically calculates and applies a correction offset so elevation maps and models reflect accurate real-world values.

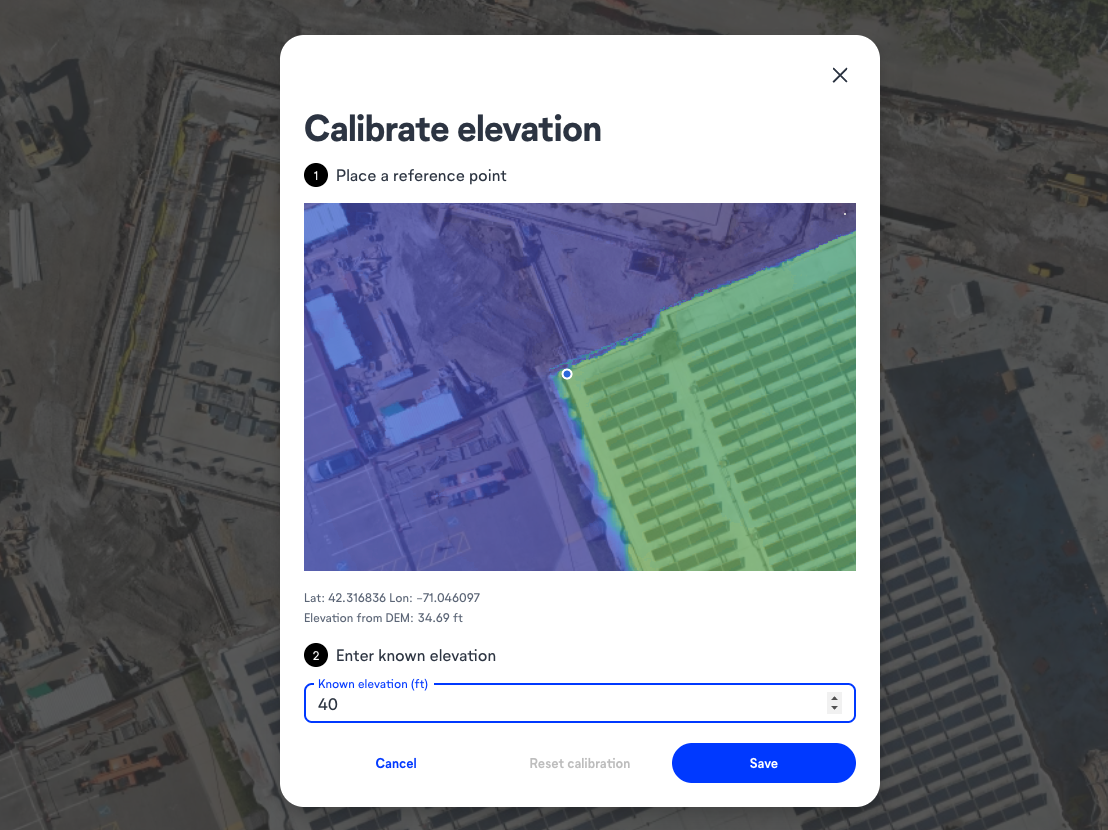

As a fallback, you can also manually set the elevation for a known point directly on the drone orthomosaic. Click the Calibrate button, select a known point, and enter the known elevation at that point. The new offset will be applied across the entire elevation model.
