Managing Autodesk Integrated Field Notes

Overview

With Integrated Field Notes, you can create Autodesk Issues directly from the OpenSpace mobile app while keeping the record linked to Autodesk. That means you can capture issues from the field with photos and AI Autolocation, then manage and resolve those issues in OpenSpace or Autodesk. You can also create Autodesk Issues in OpenSpace on desktop.

After you create a native Autodesk Issue in OpenSpace, supported fields stay aligned between OpenSpace and Autodesk through two-way sync. OpenSpace also generates a Field Note PDF report and attaches it (along with relevant images) to the corresponding item in Autodesk.

Permissions

Prerequisites

To edit Field Notes with two-way sync to Autodesk Issues, you must first:

• Enable the Autodesk integration on your project. Find instructions in this article.

Create an Integrated Field Note from the OpenSpace mobile app

• Open the OpenSpace mobile app and enter the project you want to work in.

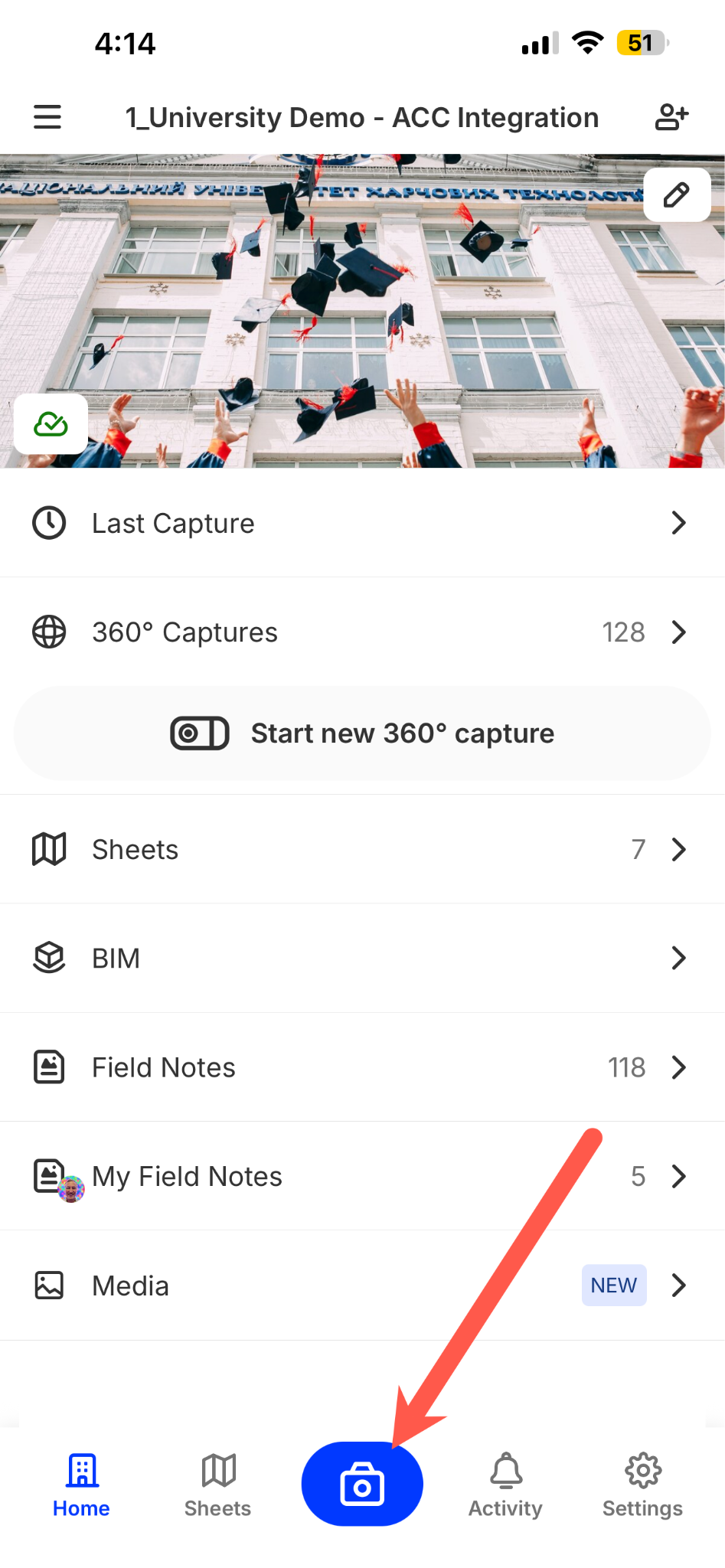

• Tap the blue camera icon to open the camera view.

• Take one or more photos you want to include.

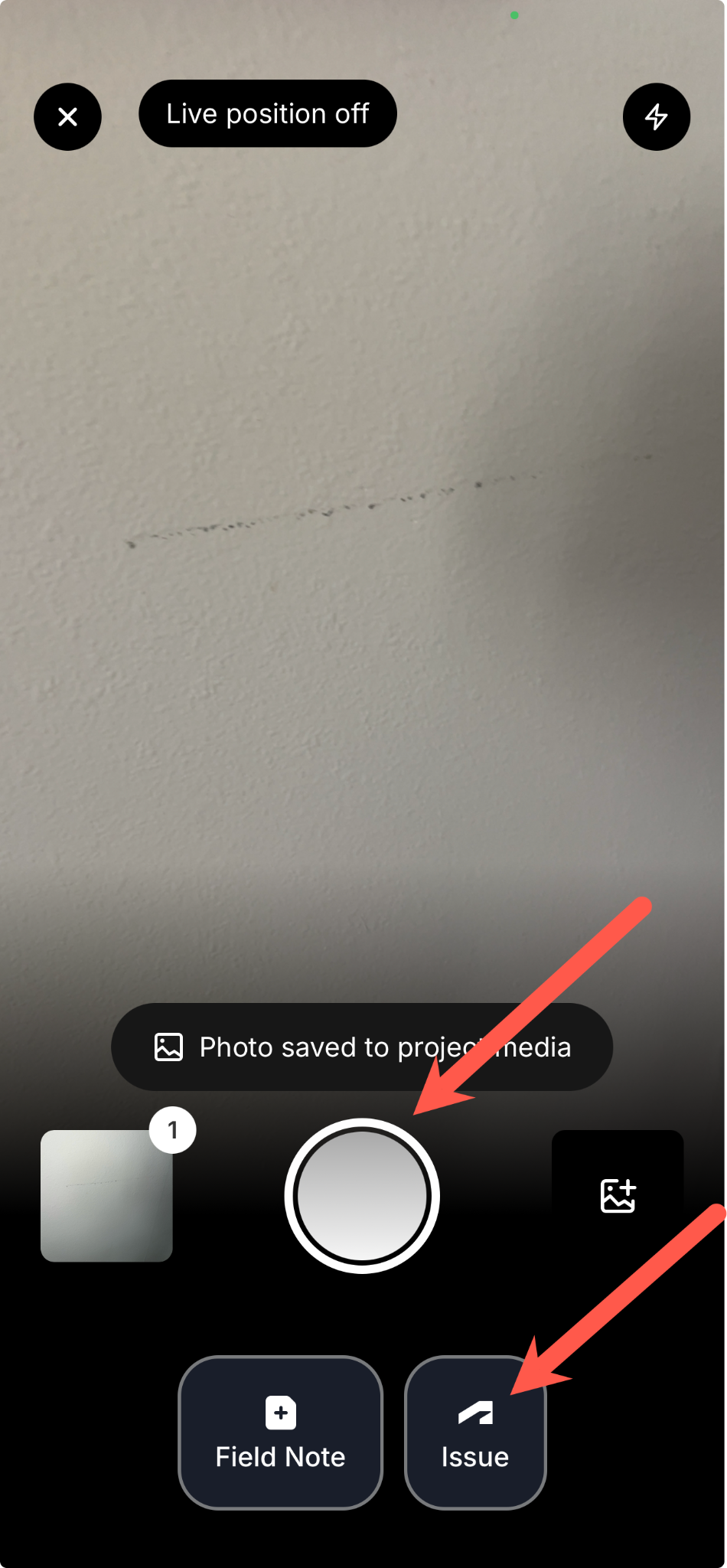

• Select Issue.

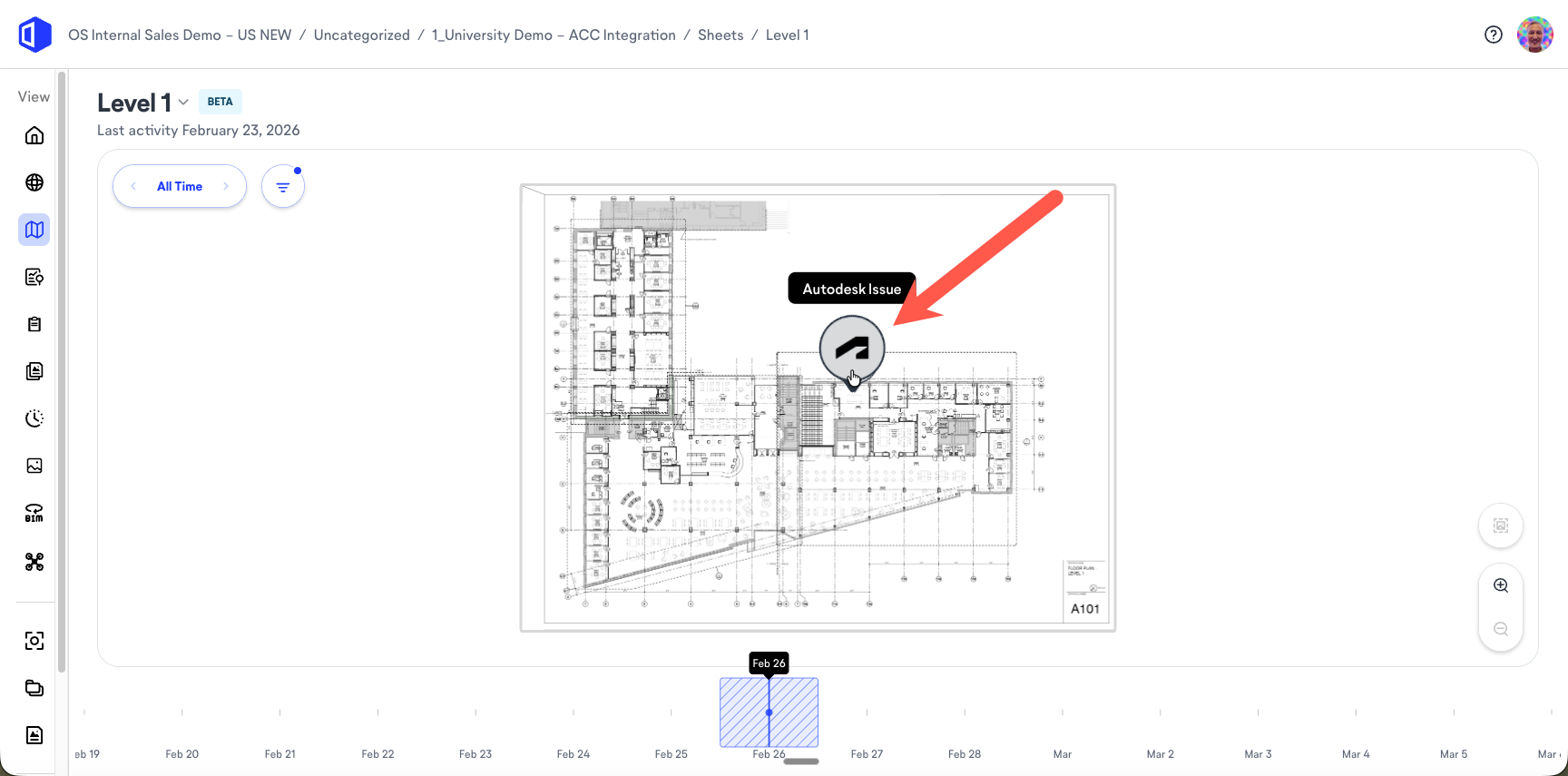

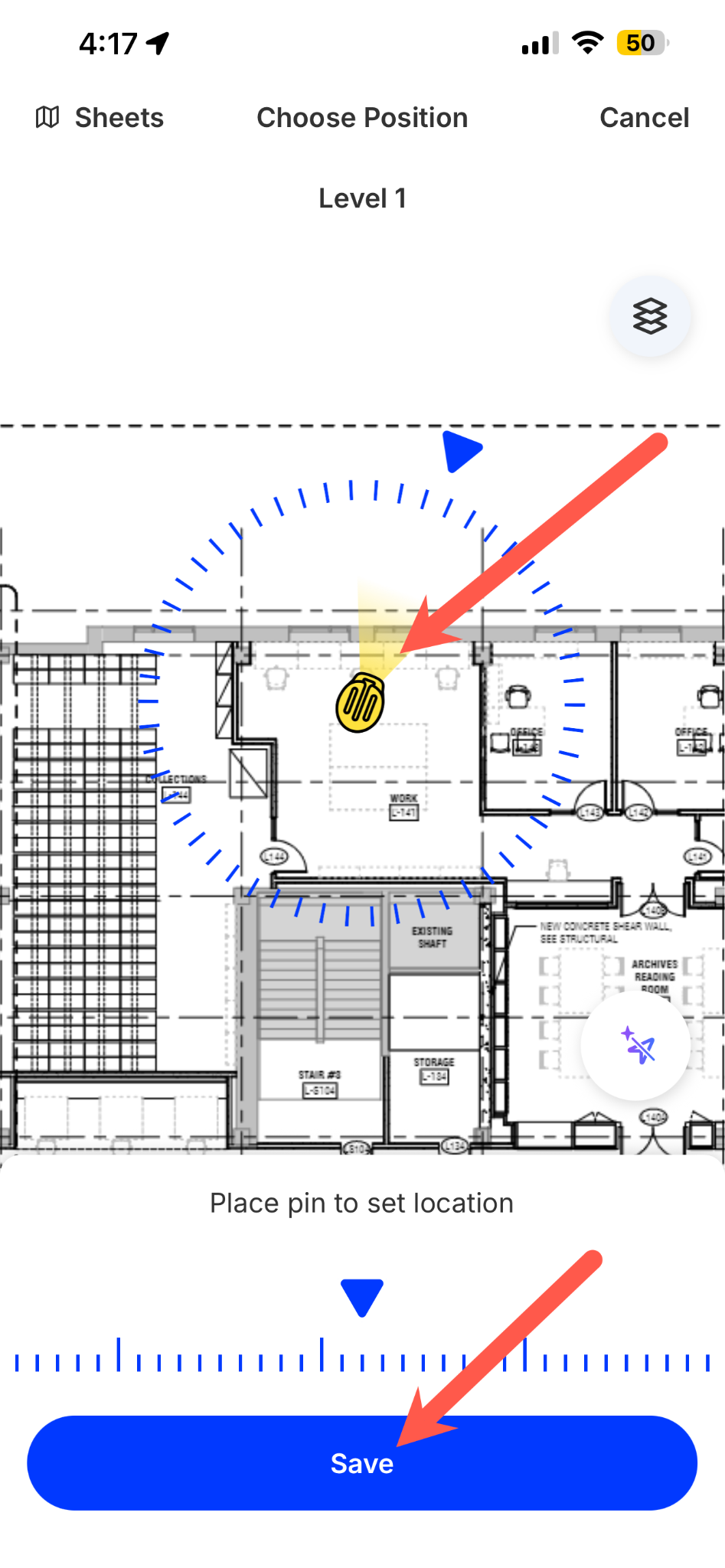

• Set the Issue location on the desired sheet, then select Save.

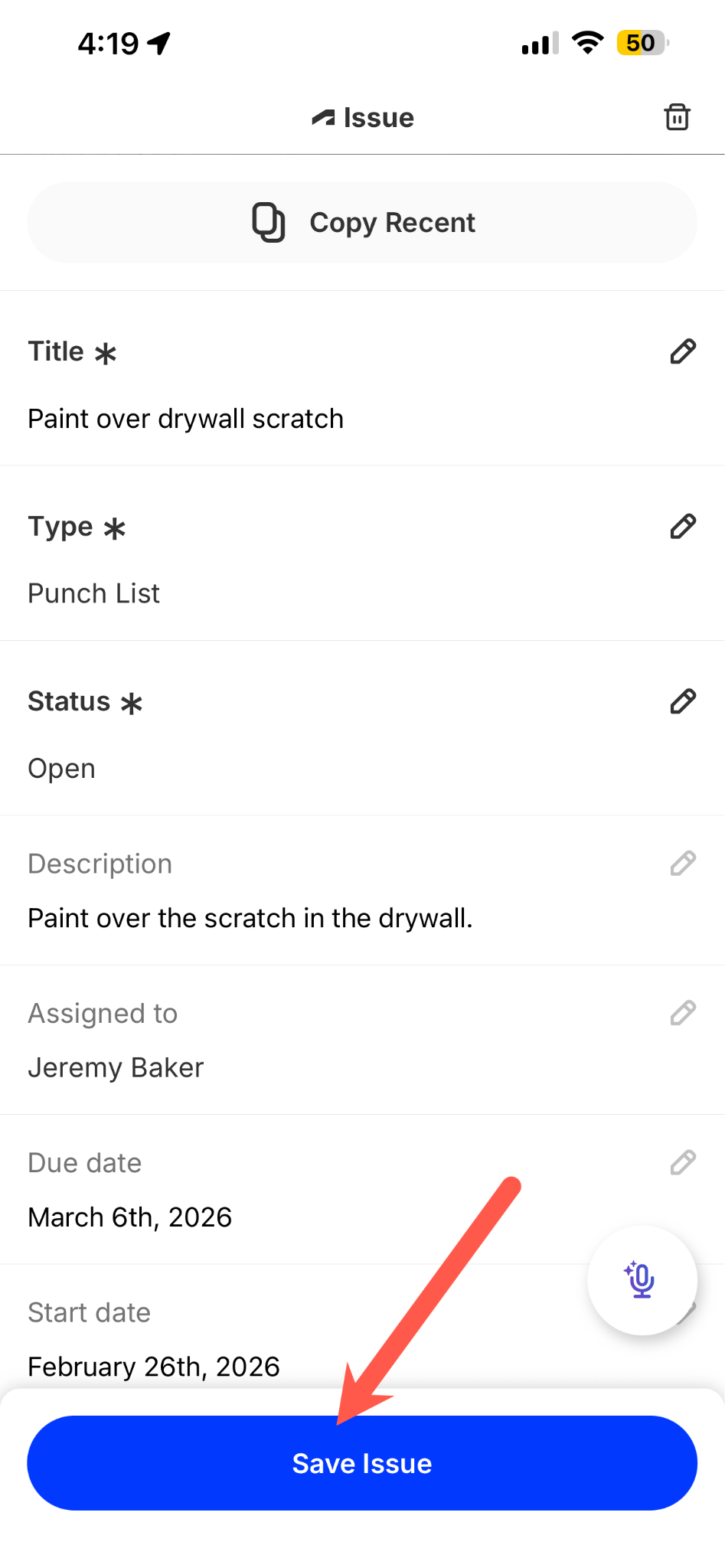

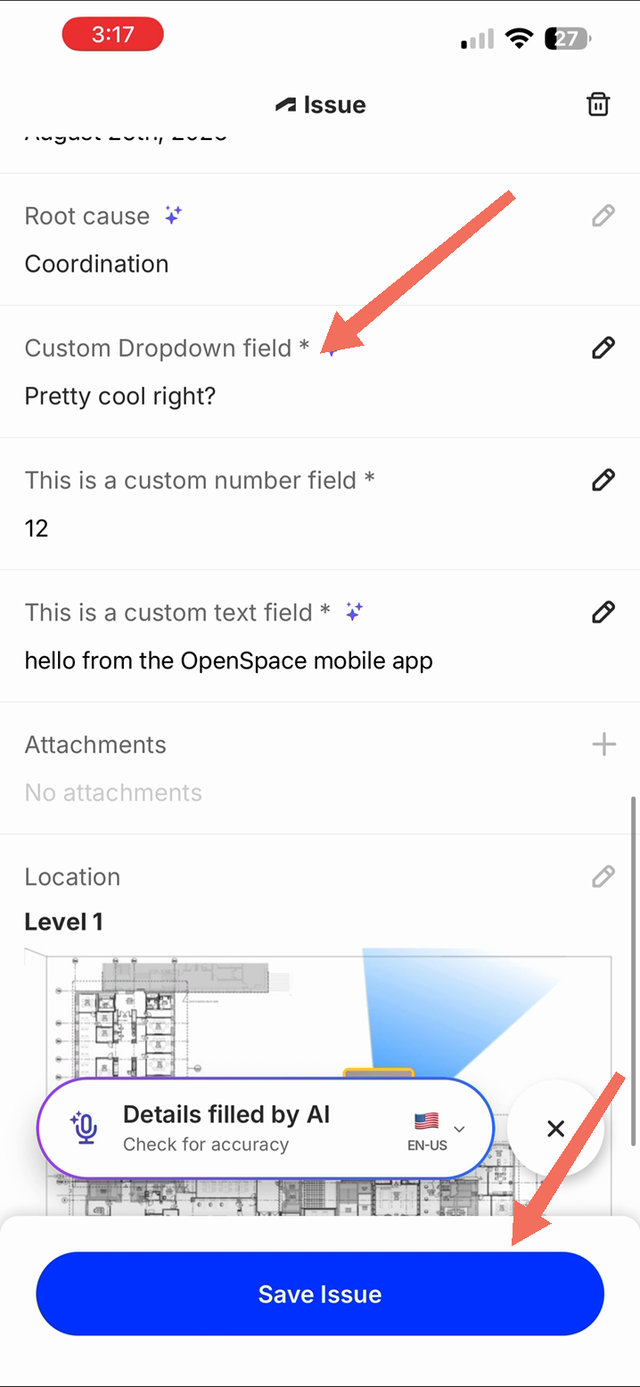

• Fill out the desired Issue fields, then select Save Issue.
  • Note: Title, Type, and Status are required fields to create an Issue.
  • Tip: Try filling out your Integrated Field Note using AI Voice Notes or the copy recent feature to save time.

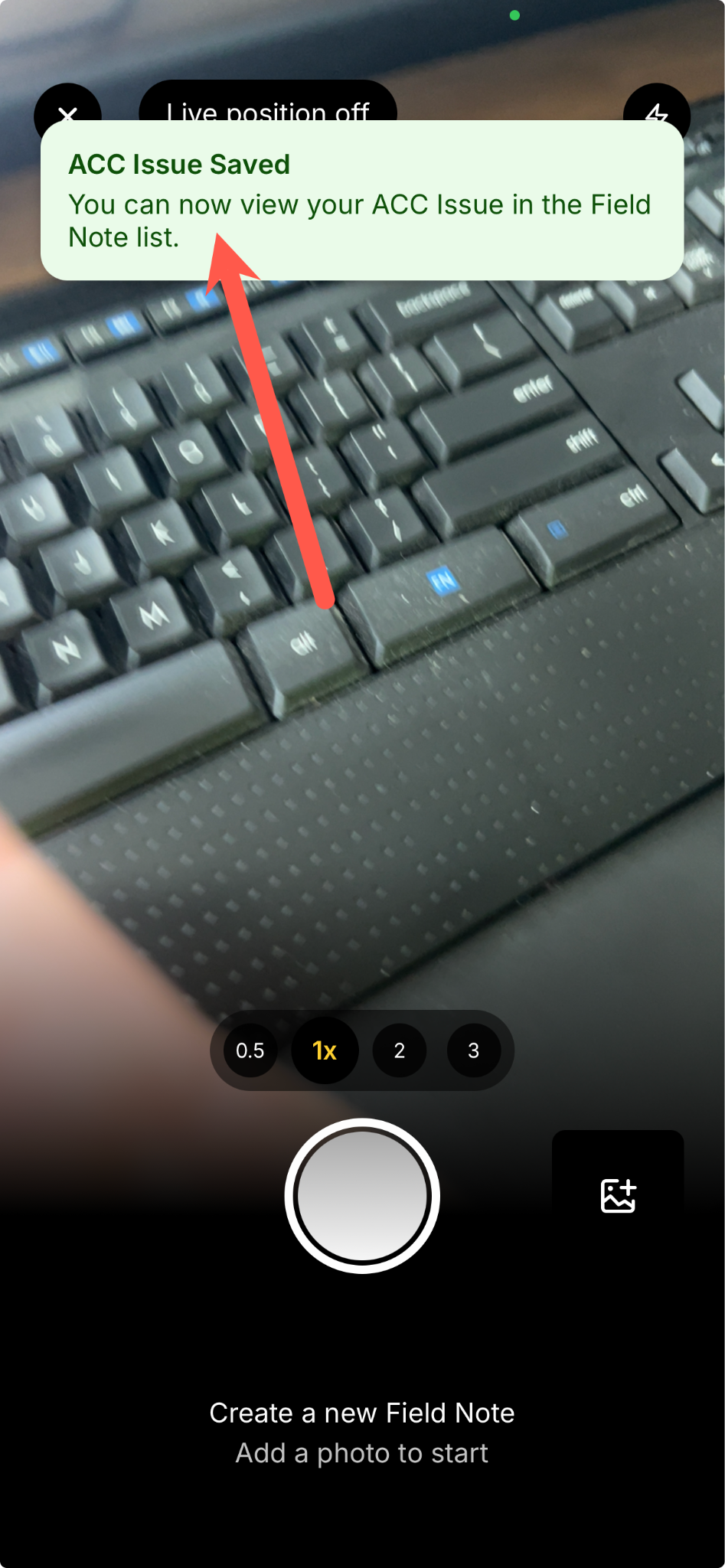

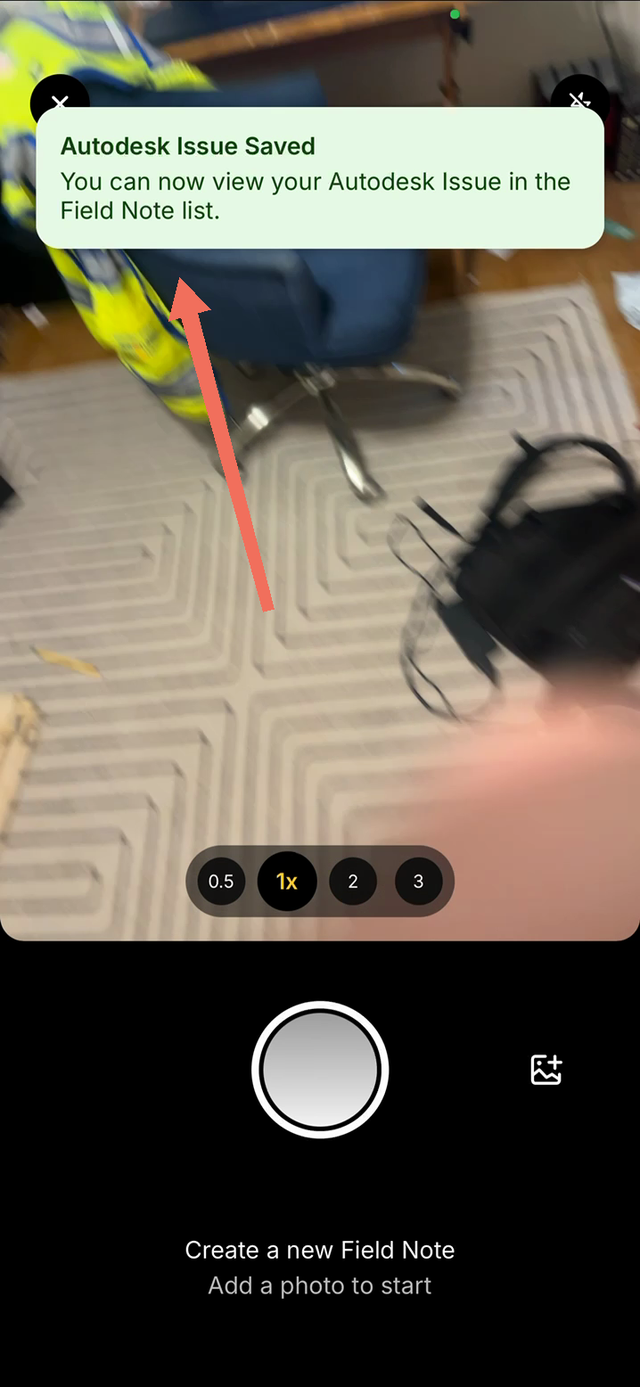

• You’ve now successfully created an Integrated Field Note in OpenSpace. These Issues will automatically be created in the integrated Autodesk project, and any edits you make in either system will sync bidirectionally.

Viewing Integrated Field Notes in the OpenSpace mobile app

• In the OpenSpace mobile app, enter the project you want to work in.

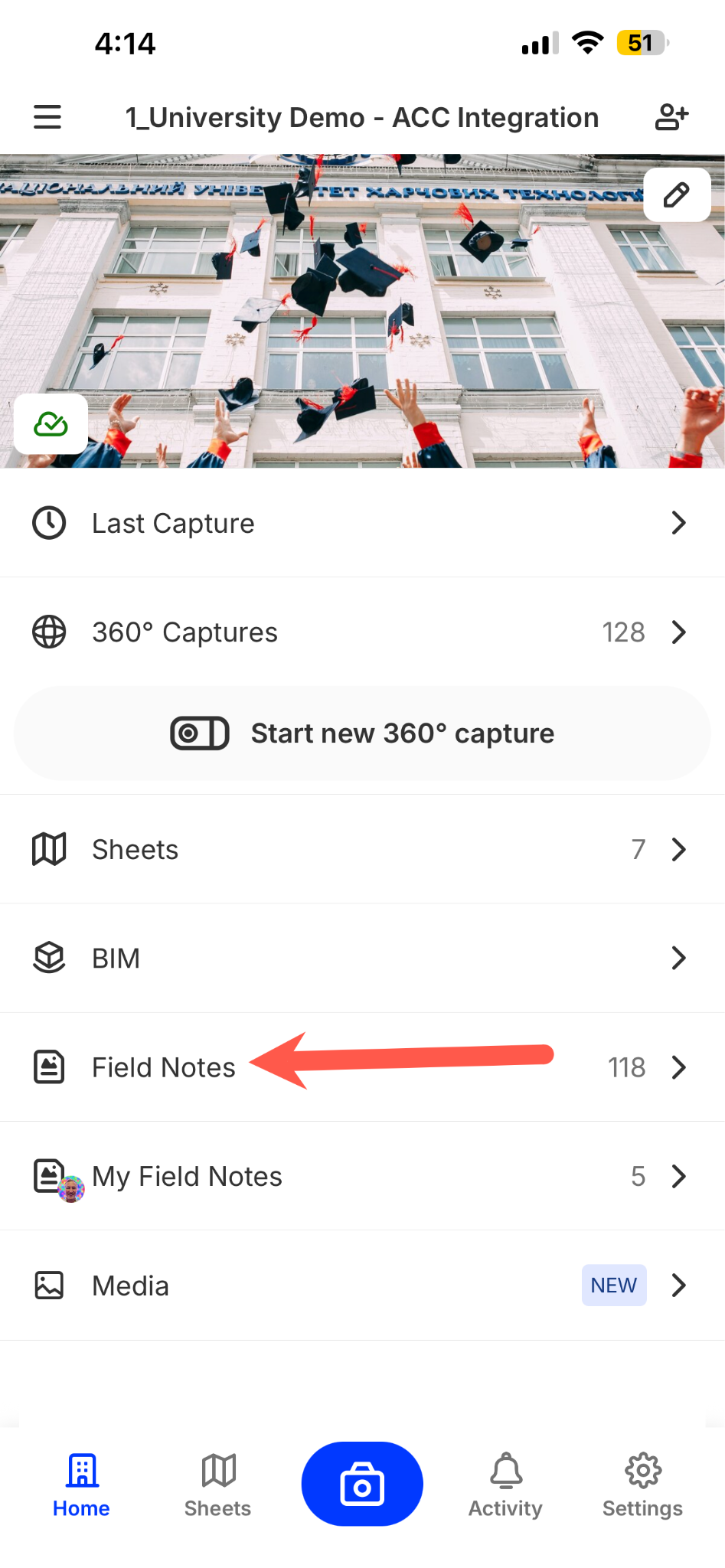

• Tap Field Notes on the project homepage.

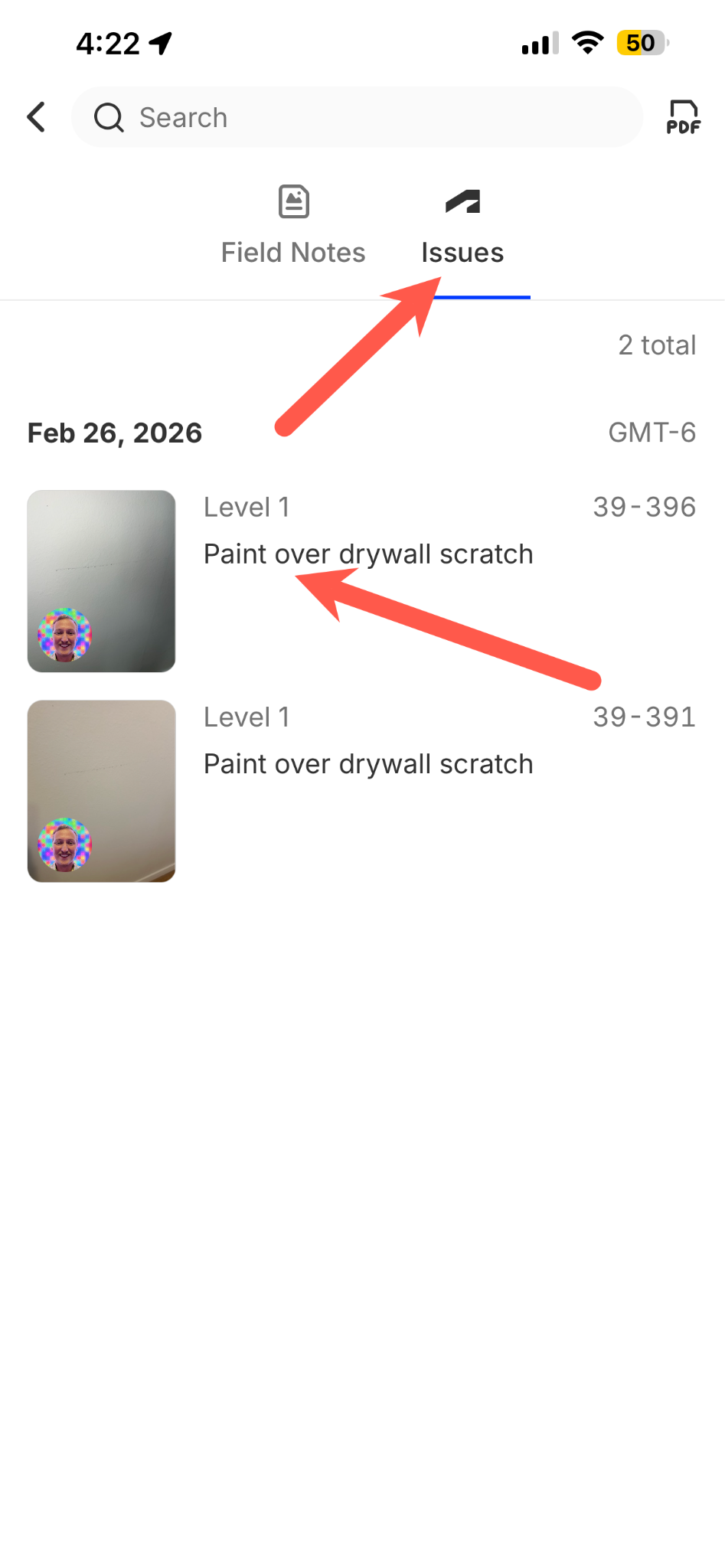

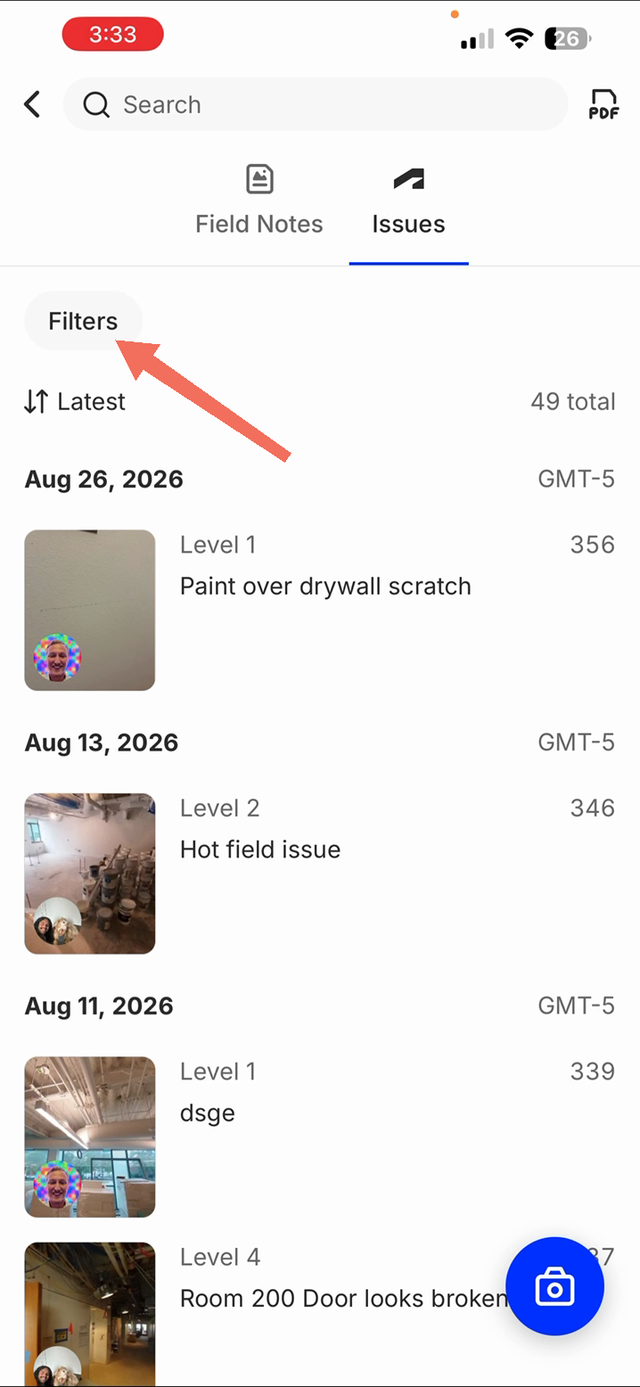

• Select Issues, then select the Integrated Field Note you want to view.

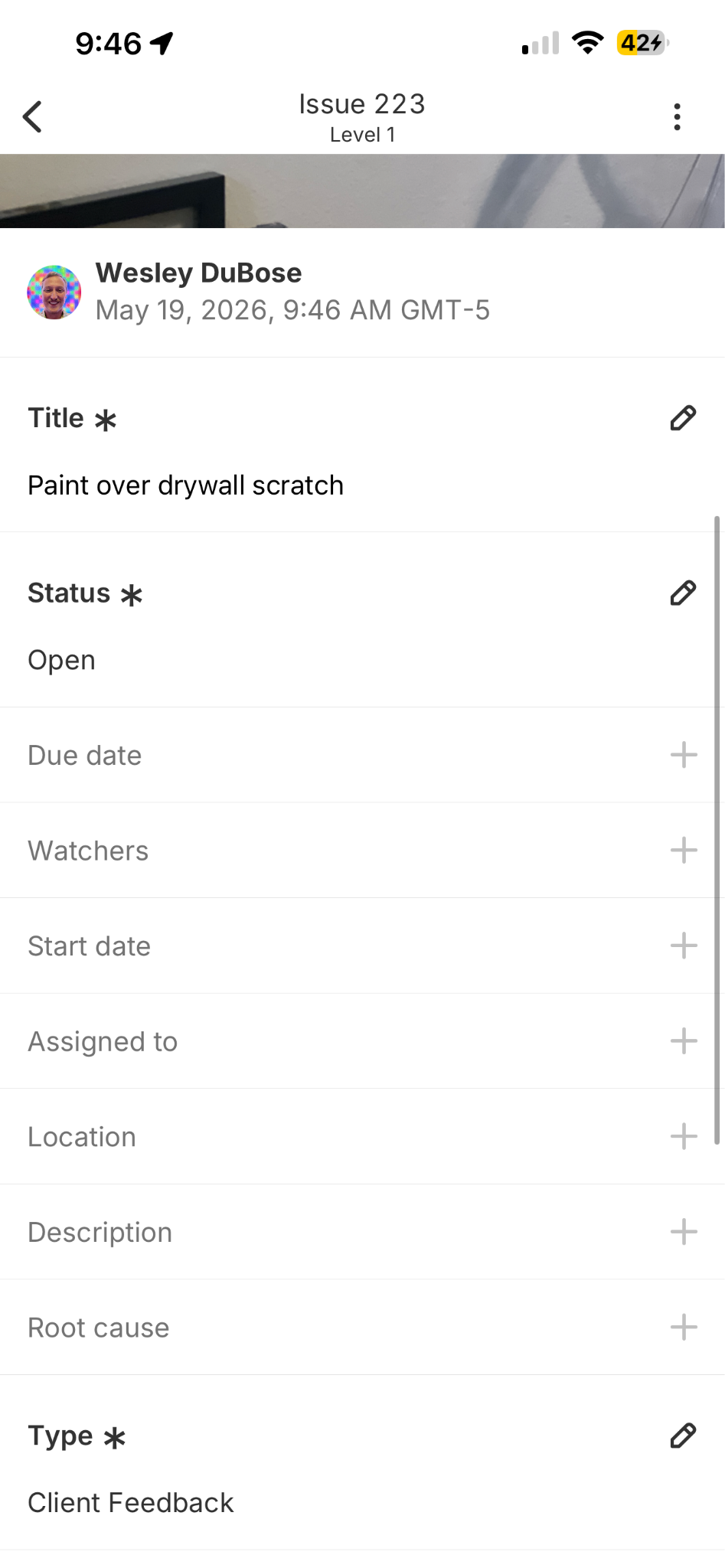

• You can scroll/view the latest information for the Integrated Field Note.
  • Note: You can only view these items in the mobile app. To edit, you need to use OpenSpace on desktop. Editing in mobile is coming soon.

Create an Autodesk Issue in OpenSpace on desktop

• Log in to OpenSpace on desktop and enter the capture viewer on the project you want to work in.

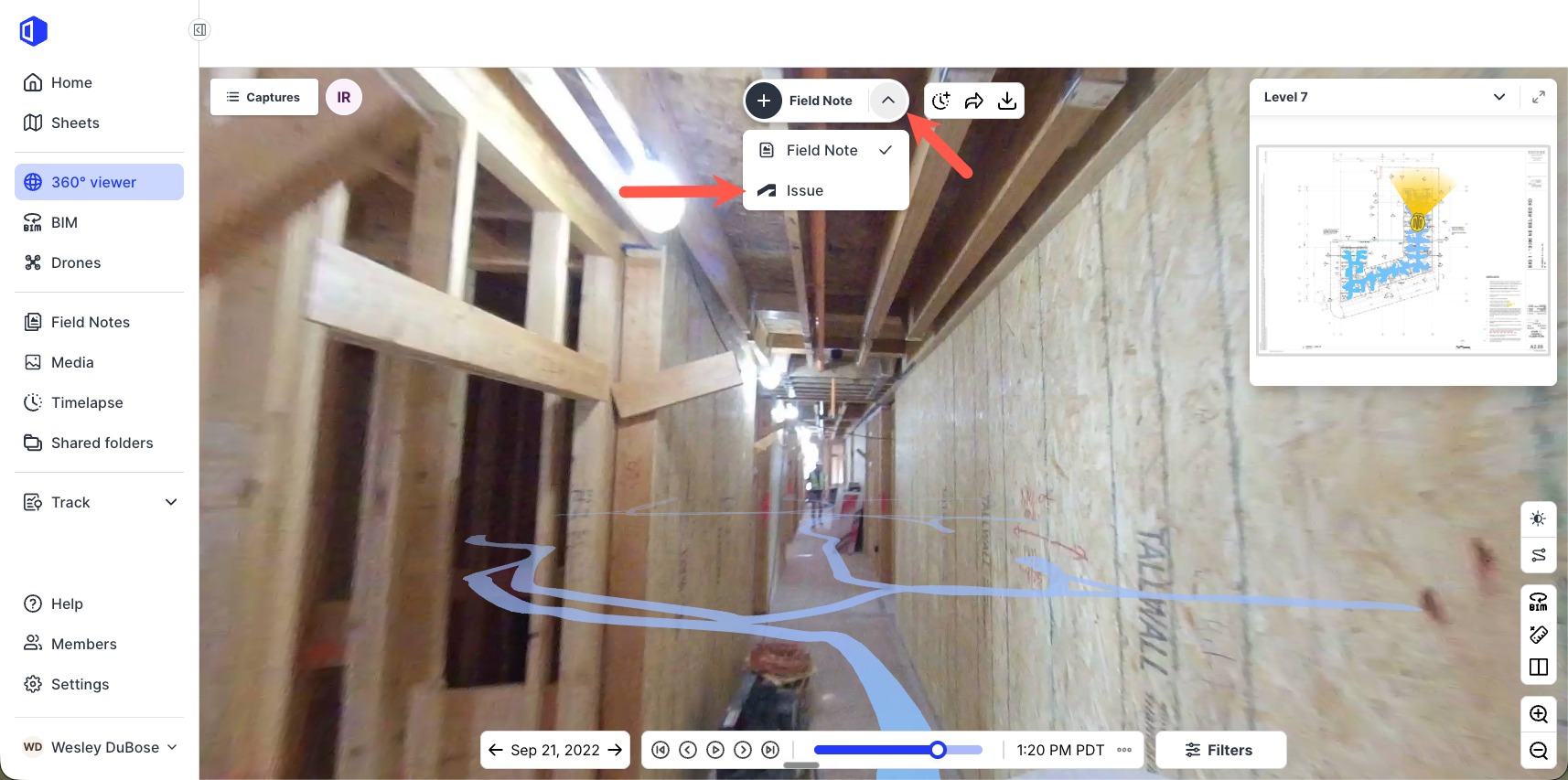

• Select the dropdown next to Field Note, then select Issue.

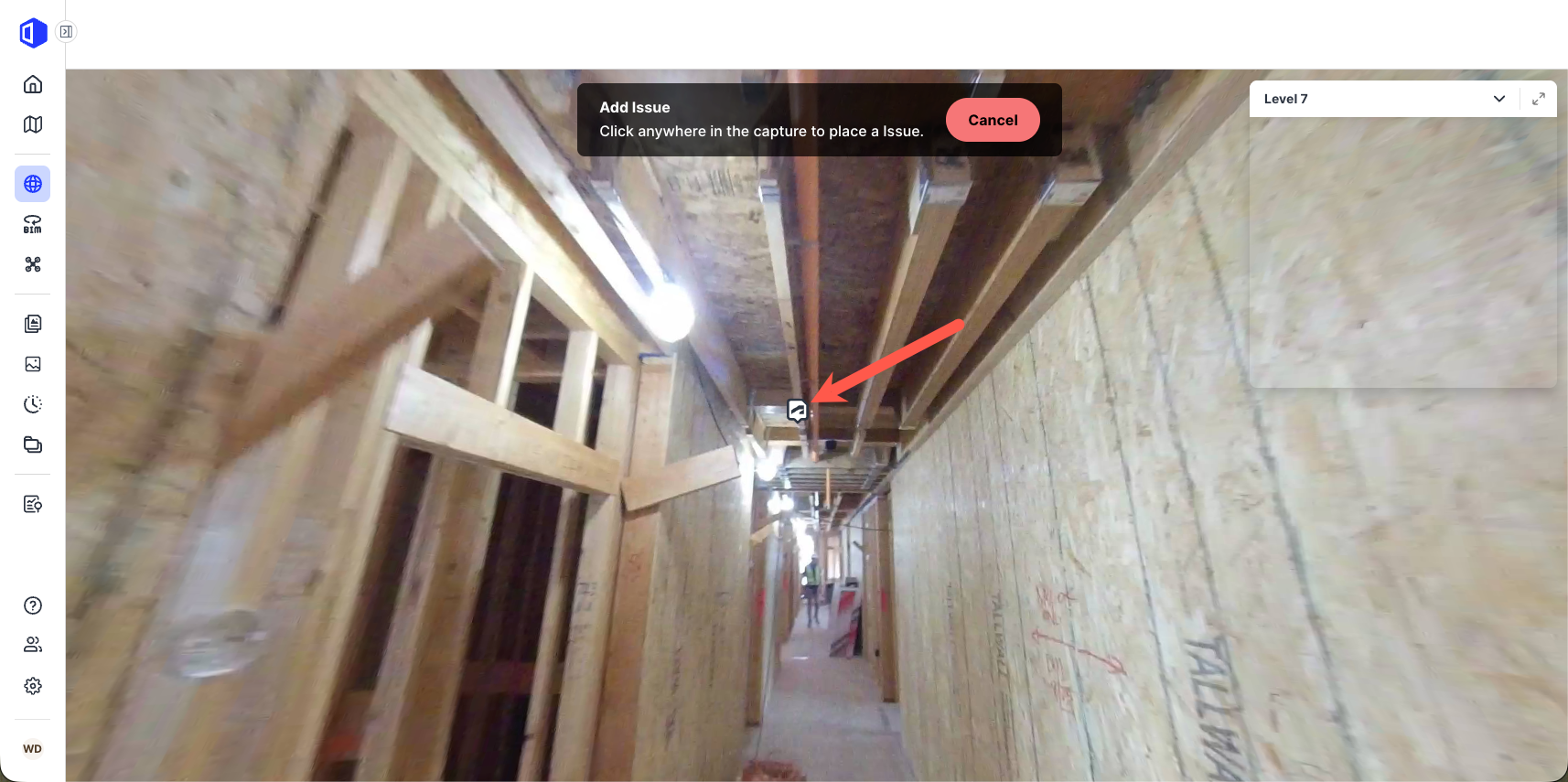

• Your mouse now displays as the Autodesk Issue icon. Click where you want to place your new Issue.

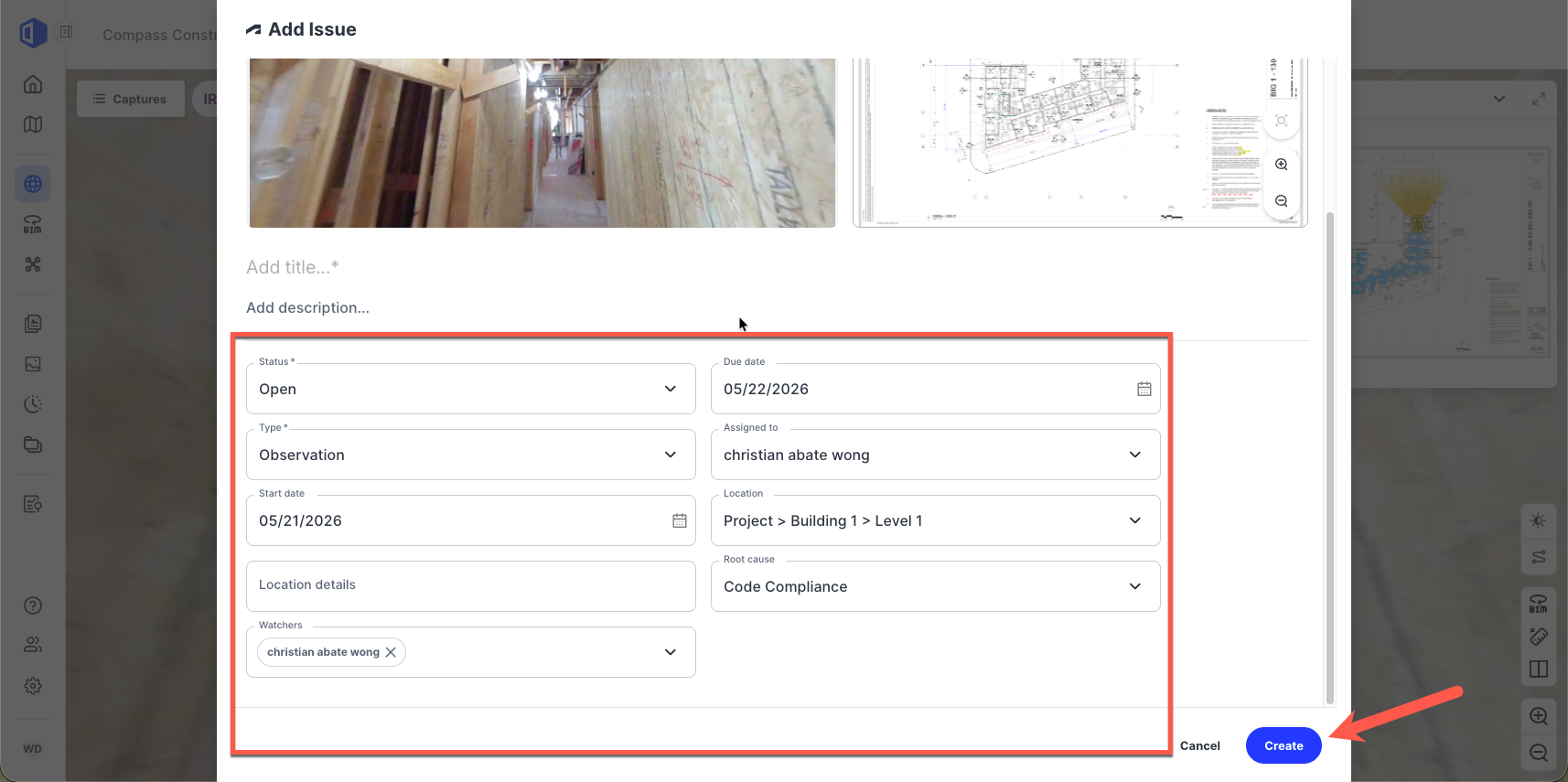

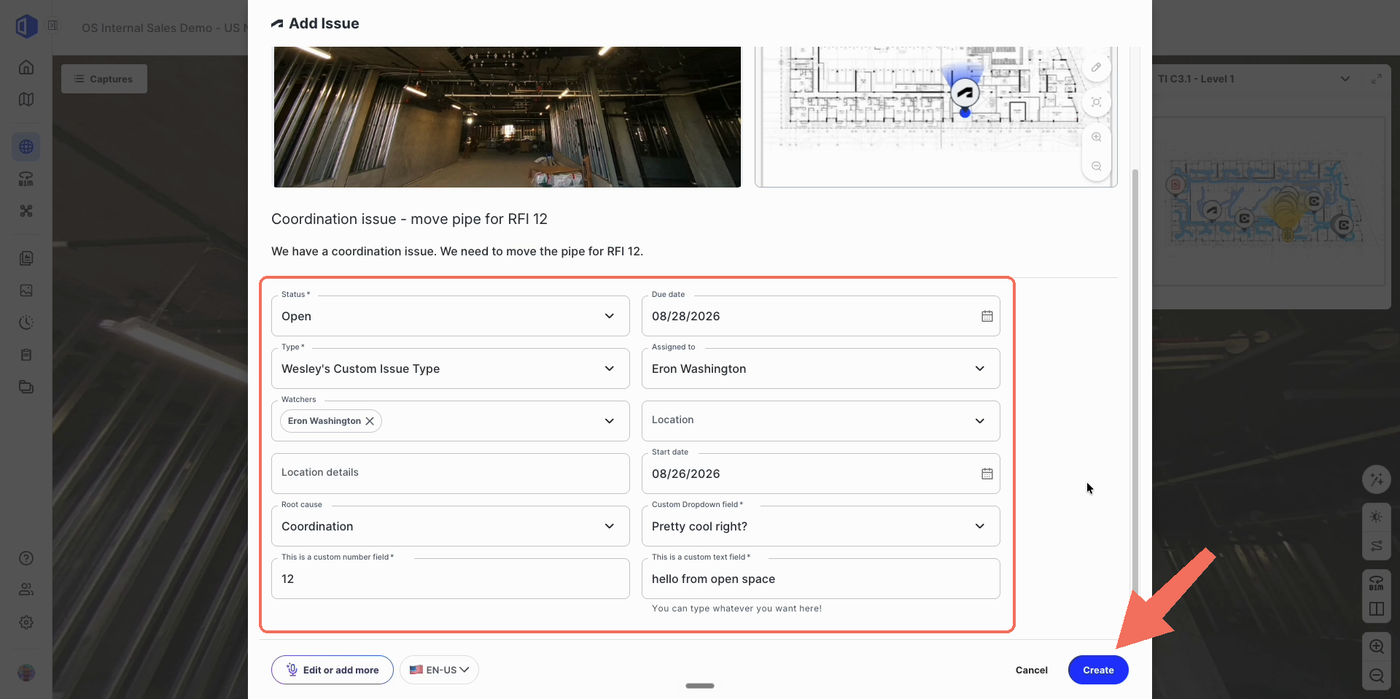

• Fill out the desired information for the Issue, then select Create.

Viewing & editing Integrated Field Notes in OpenSpace on desktop

• Log in to OpenSpace on desktop and select the desired project you wish to work in.

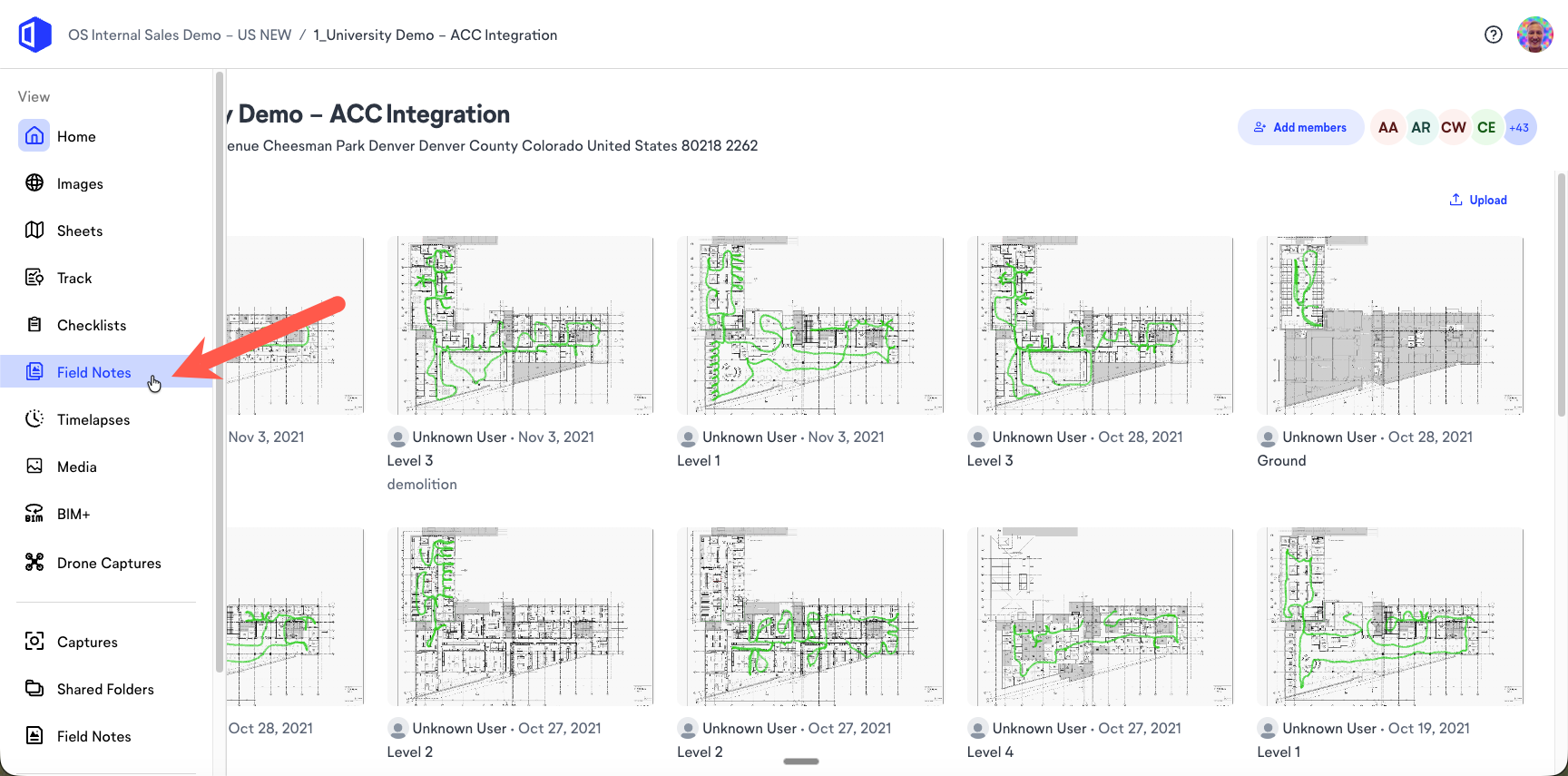

• Select Field Notes from the project sidebar.

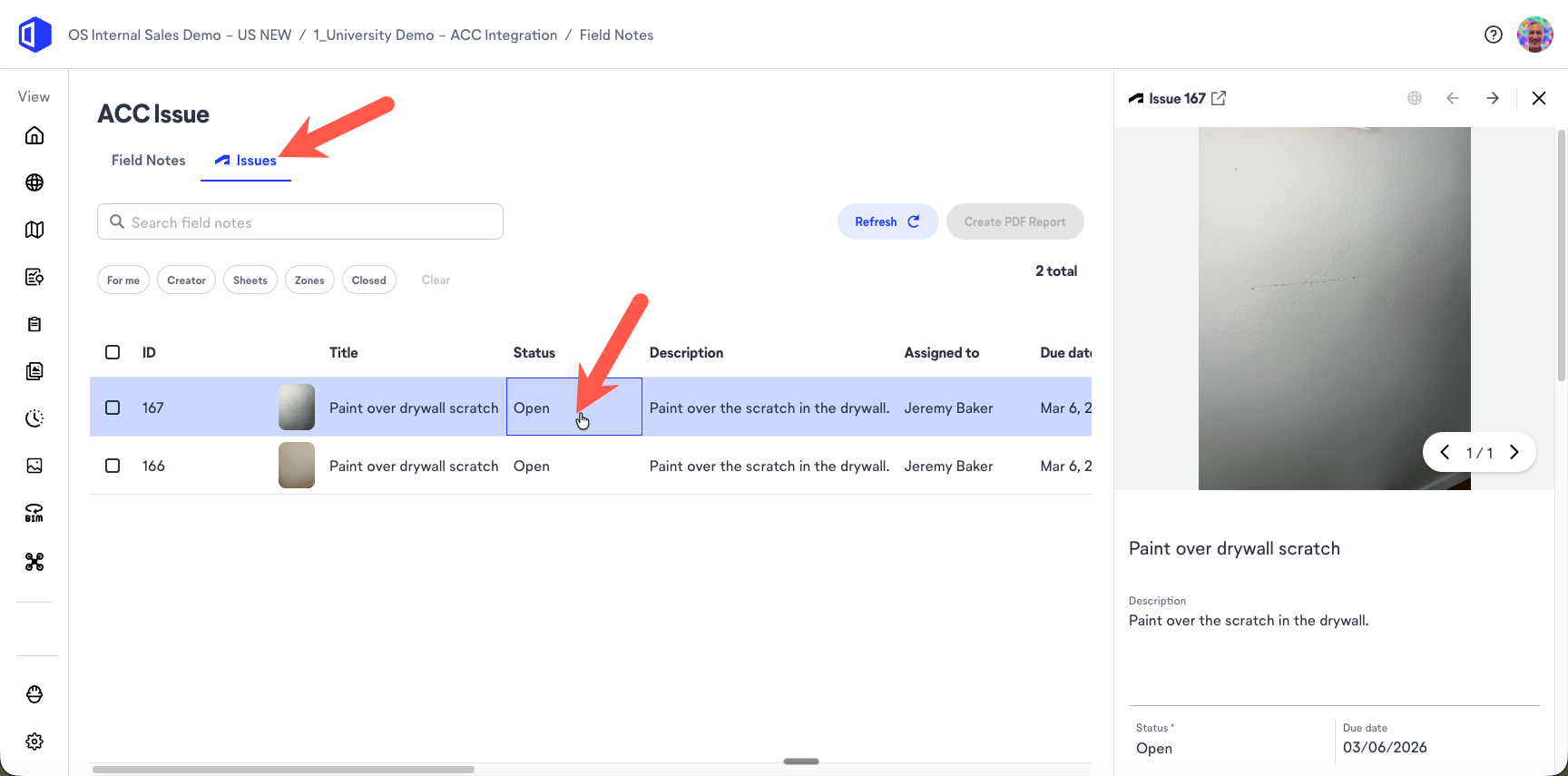

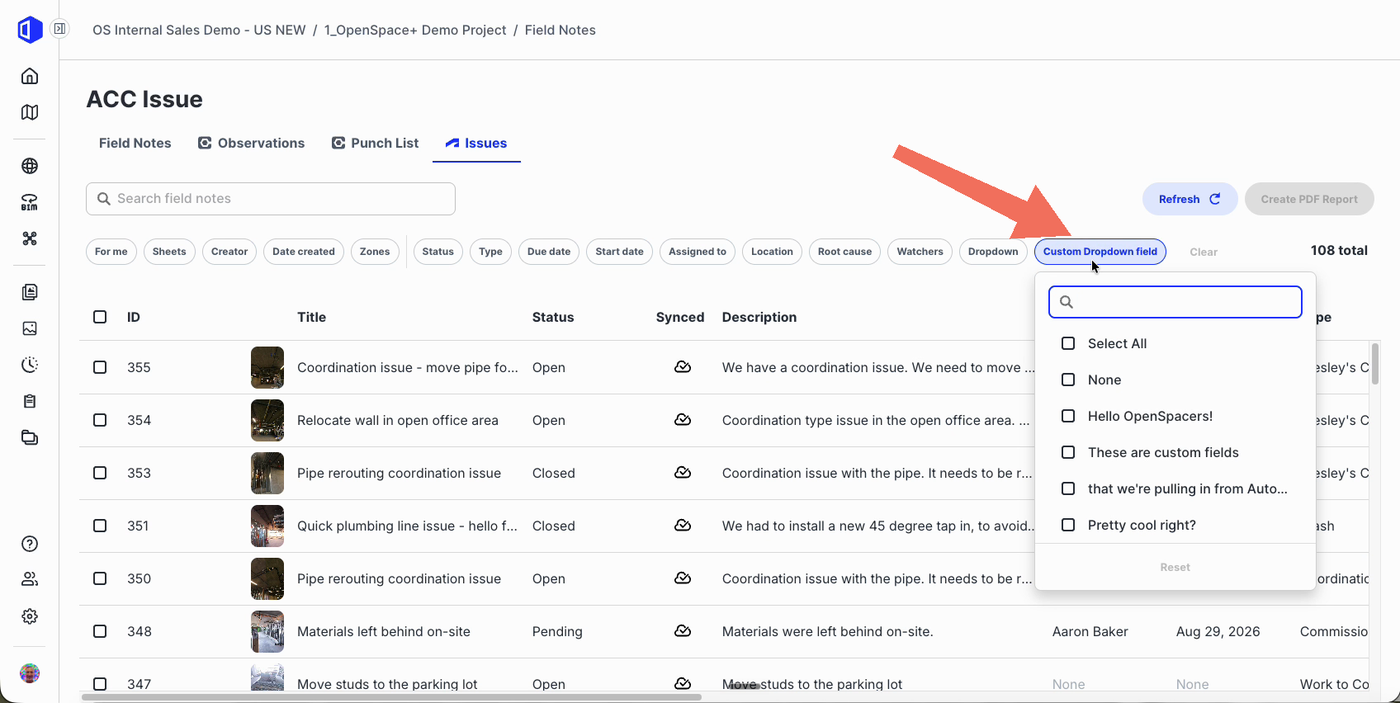

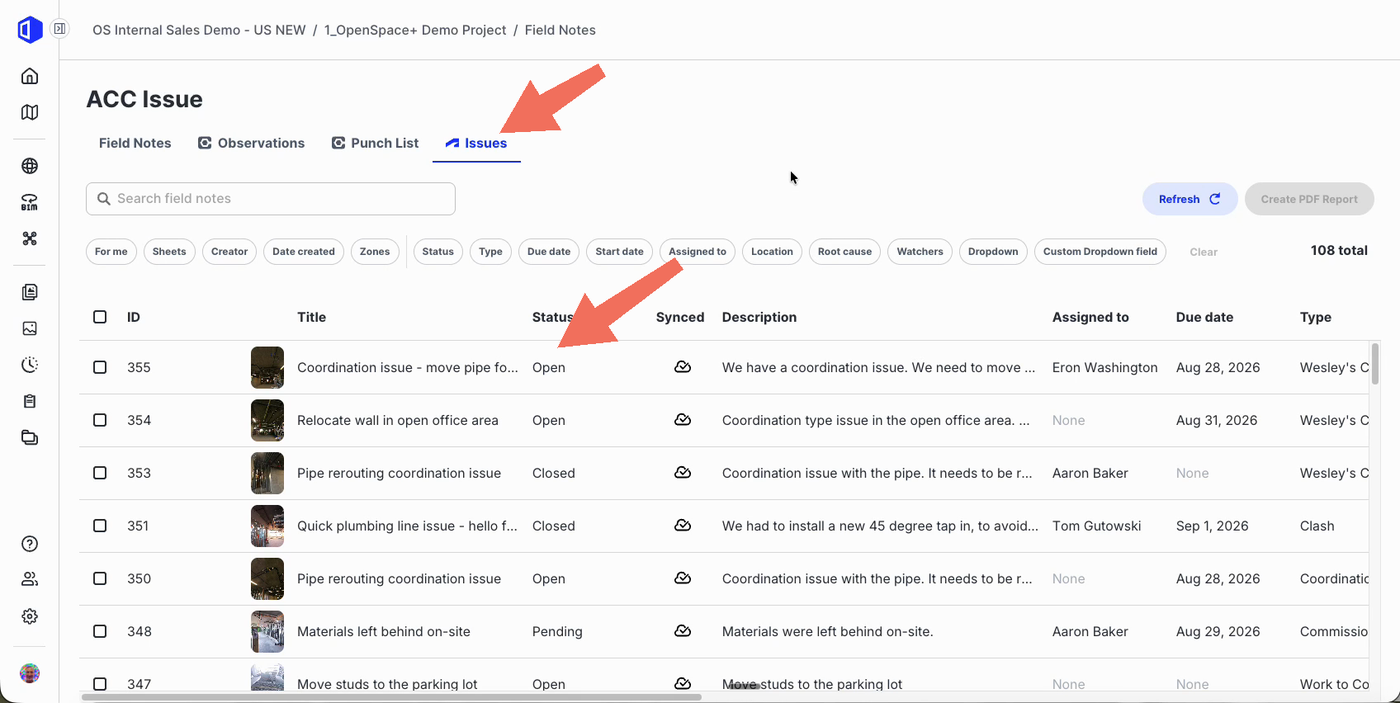

• Select Issues, then select the Integrated Field Note you want to view.

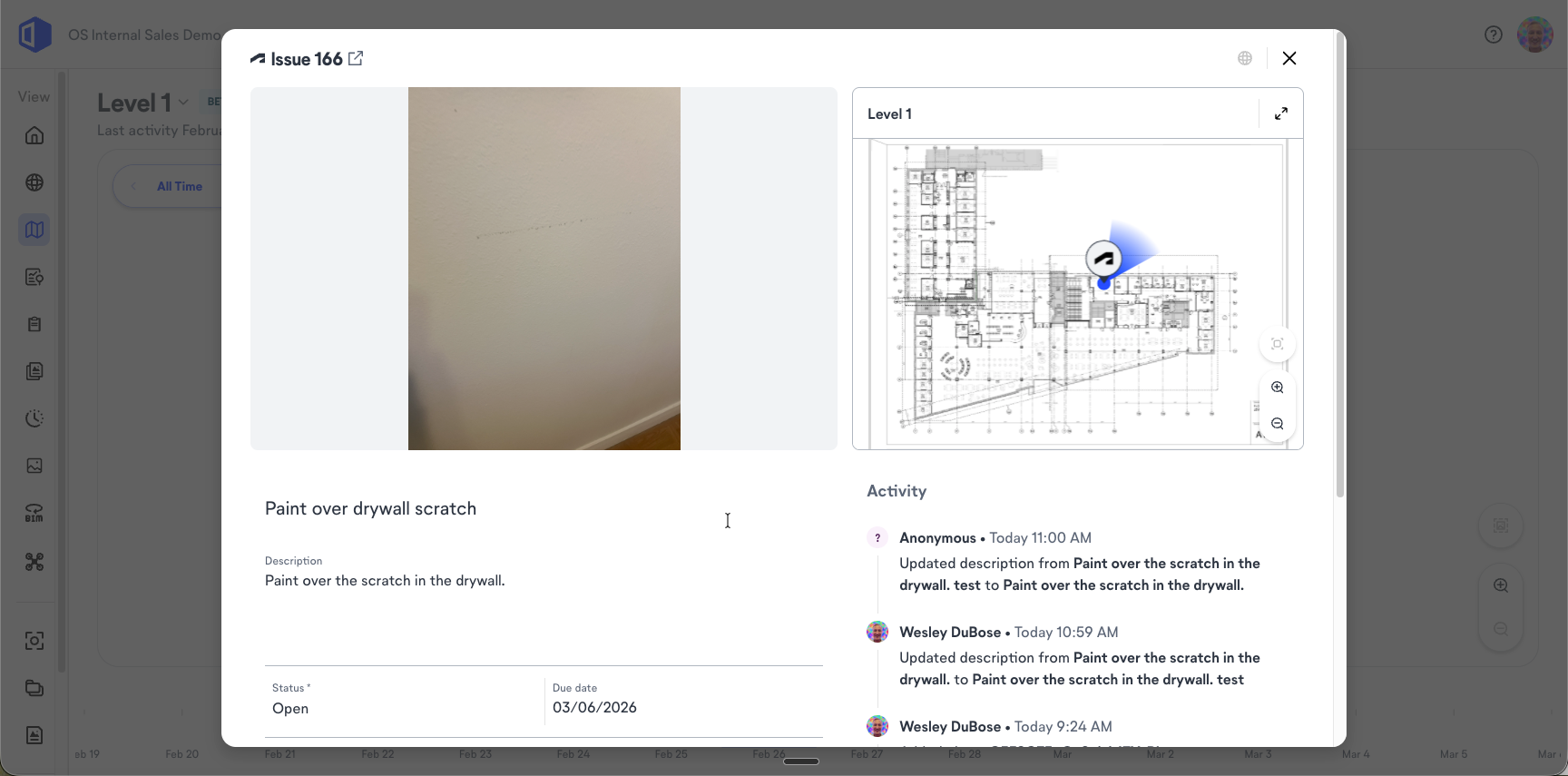

• Here, you can view/edit the content of your Integrated Field Note. Any edits you make here will automatically sync to the associated Issue in Autodesk.
  • Note: Any updates made to the associated Issue item in Autodesk will also automatically sync back to OpenSpace.
  • Tip: You can also view/edit Integrated Field Notes from the sheets/capture view in OpenSpace.

If you have any additional questions please reach out to the OpenSpace Support team at support@openspace.ai.
